Bilstein

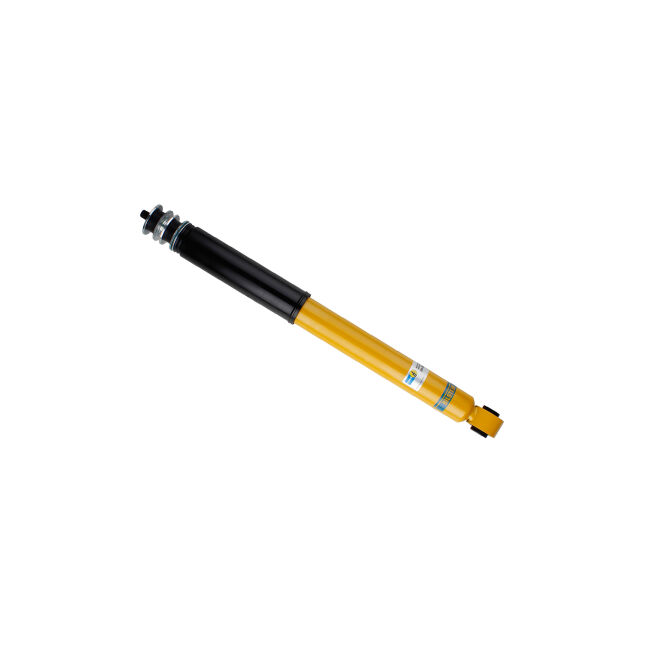

B6 4600 - Suspension Shock Absorber

$161.00 Price Match Request Badge

By Bilstein -

#BIL 24269049

Your Vehicle

Select Your Delivery Method

Description

Bilstein B6 4600 shock absorbers are designed as a direct fit upgrade to OE shock absorbers on stock height light trucks and SUV’s. These shock absorbers feature a monotube design which provides consistent fade free performance. B6 4600 shock absorbers utilize a unique, velocity sensitive, digressive piston which reacts to changing road conditions. All B6 4600 shock absorbers are tuned for each specific application to ensure optimal performance is achieved. B6 4600 shock absorbers offer a significant improvement in ride quality, handling, and comfort.

Specifications

FAB:

46mm monotube design ensures consistent, fade-free performance in all conditions

Piston Diameter:

46mm

Stroke/Travel Length (IN):

8.58

Stroke/Travel Length (mm):

217.9

Title:

Bilstein Shock Absorbers

Active or Passive Suspension:

Passive

Adjustable Compression:

No

Adjustable Rebound:

No

Adjustable Ride Height:

No

Series:

B6 4600

Finish:

Yellow Paint

Boot Included:

Black Straight

Spring Seat Included:

No

Upper Mount Type:

Stem

Internal Design:

Monotube

Lower Mount Type:

Eye 19.1mm

Reservoir:

No

Adjustable Damping:

Non-Adjustable

Body Design:

Smooth Body (Non-Coilover)

Collapsed Length (MM):

371.0

Extended Length (MM):

589.0

Extended Length (IN):

23.19

Collapsed Length (IN):

14.61

Body Diameter (ID):

46mm

Grade Type:

Performance

Mounting Hardware Included:

No

Shaft Diameter:

18mm

Travel Length:

8.58

Compressed Length:

371.0

Extended Length:

589.0

PartType:

Shocks / Struts

Segment:

Light Truck

Prop 65 (Y/N):

Y

Prop 65 - Short Label:

WARNING: Cancer & Reproductive Harm - www.P65Warnings.ca.gov

Installation

BILE4-WM5-Y574A00.pdf

Product Fitments

2008-2011 Toyota Land Cruiser Base
2013-2021 Toyota Land Cruiser Base
2020-2021 Toyota Land Cruiser Heritage Edition
