Description
Specifications
FAB:
46mm monotube design ensures consistent, fade-free performance in all conditions
FAB:
Specific tuning for stock height vehicles
Piston Diameter:
46mm
Stroke/Travel Length (IN):
9.40
Stroke/Travel Length (mm):
238.8
Title:

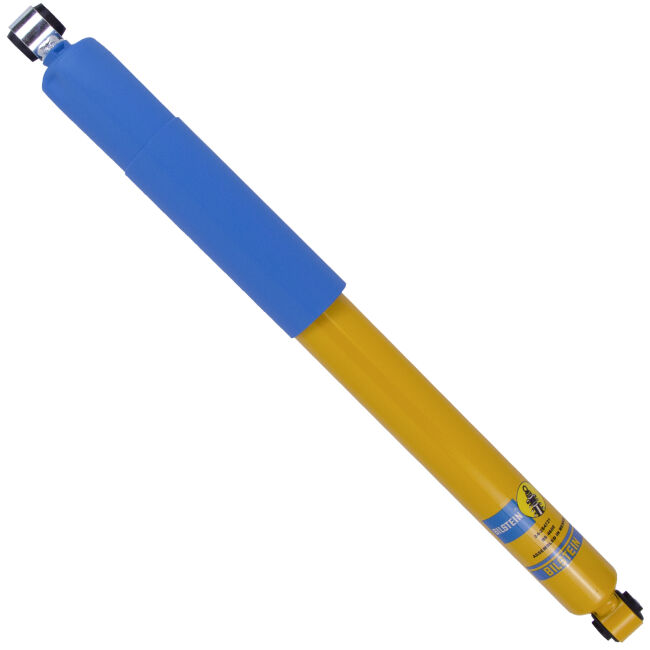

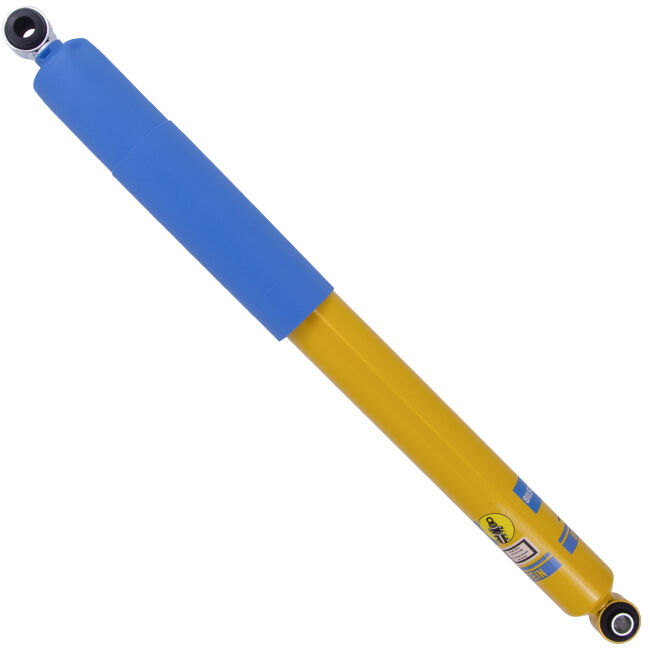

Bilstein Shock Absorbers
Active or Passive Suspension:
Passive
Adjustable Compression:
No
Adjustable Rebound:
No
Adjustable Ride Height:
No
Series:
B6 4600
Finish:
Yellow Paint
Boot Included:
Blue Straight
Spring Seat Included:
No
Upper Mount Type:
Eye 16mm
Internal Design:
Monotube
Lower Mount Type:
Eye 14.1mm
Reservoir:
No
Adjustable Damping:
Non-Adjustable
Body Design:
Smooth Body (Non-Coilover)
Collapsed Length (MM):
400.0
Extended Length (MM):
638.7
Extended Length (IN):
25.15
Collapsed Length (IN):
15.75
Body Diameter (ID):
46mm
Grade Type:
Performance
Mounting Hardware Included:
No
Shaft Diameter:
14mm
Travel Length:
9.40
Compressed Length:
400.0
Extended Length:
638.7
PartType:
Shocks / Struts
Segment:
Light Truck
Prop 65 (Y/N):
Y
Prop 65 - Short Label:
WARNING: Cancer & Reproductive Harm - www.P65Warnings.ca.gov
Installation
Product Fitments
