Description
Specifications
FAB:
46mm monotube design ensures consistent, fade-free performance in all conditions
Piston Diameter:
46mm
Spring Max Travel (IN):
8.70
Stroke/Travel Length (IN):
8.70
Stroke/Travel Length (mm):
221.0
Title:

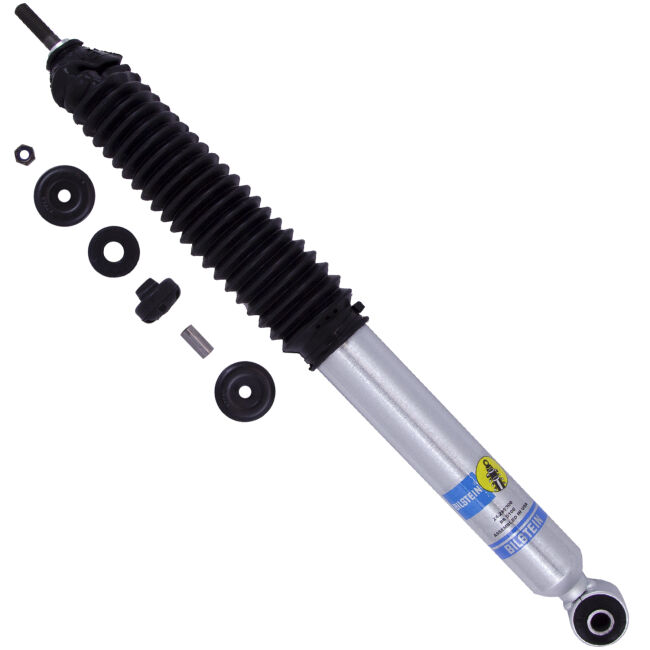

Bilstein Shock Absorbers
Active or Passive Suspension:
Passive
Adjustable Compression:
No
Adjustable Rebound:
No
Adjustable Ride Height:
No
Series:
B8 5100
Finish:
Zinc Plated
Boot Included:
Black Bellows
Spring Seat Included:
No
Upper Mount Type:
Stem
Internal Design:
Monotube
Lower Mount Type:
Eye 14.1mm
Reservoir:
No
Adjustable Damping:
Non-Adjustable
Body Design:
Smooth Body (Non-Coilover)
Collapsed Length (MM):
436.0
Extended Length (MM):
655.8
Extended Length (IN):
25.82
Collapsed Length (IN):
17.17
Body Diameter (ID):
46mm
Grade Type:
Performance

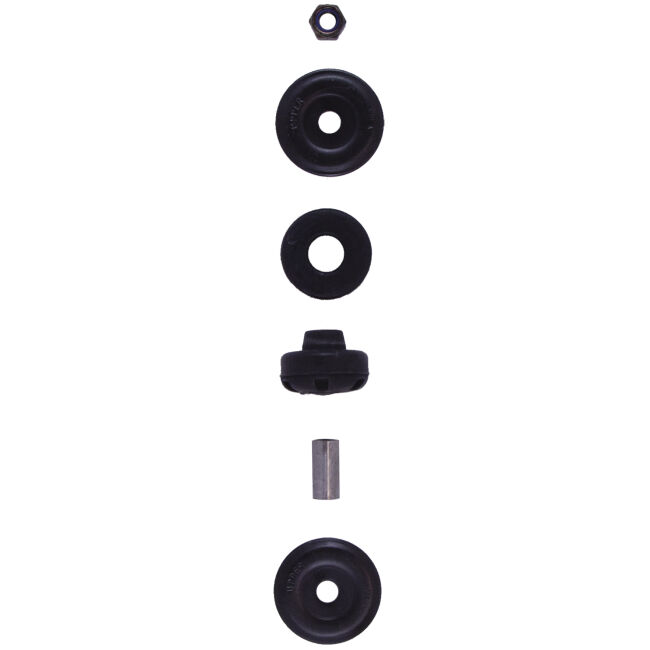

Mounting Hardware Included:
Yes
Shaft Diameter:
14mm
Travel Length:
8.70
Compressed Length:
436.0
Extended Length:
655.8
PartType:
Shocks / Struts
Segment:
Light Truck
Prop 65 (Y/N):
Y
Prop 65 - Short Label:
WARNING: Cancer & Reproductive Harm - www.P65Warnings.ca.gov
Installation
Product Fitments
