Description
Specifications
FAB:
Specific tuning for stock height vehicles
FAB:
Uses OEM springs and mounting hardware
Piston Diameter:
46mm
Stroke/Travel Length (IN):
6.41
Stroke/Travel Length (mm):
162.8
Title:

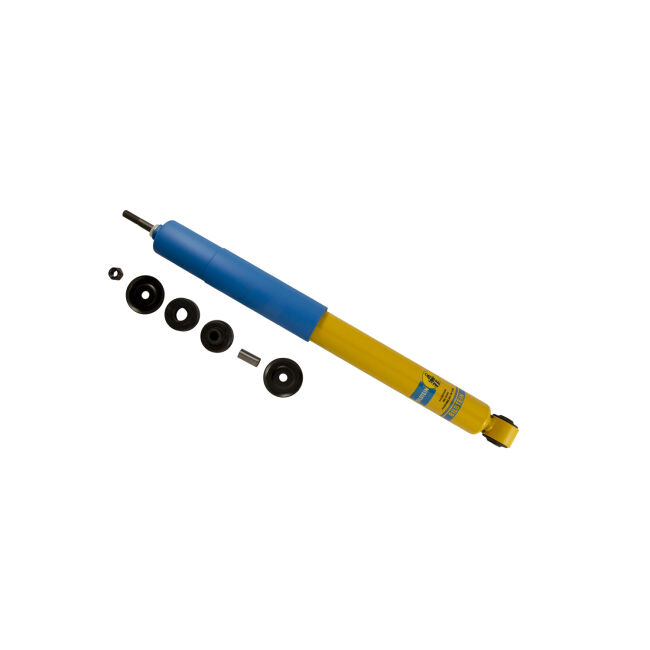

Bilstein Shock Absorbers
Active or Passive Suspension:
Passive
Adjustable Compression:
No
Adjustable Rebound:
No
Adjustable Ride Height:
No
Series:
B6 4600
Finish:
Yellow Paint
Boot Included:
Blue Straight
Spring Seat Included:
No
Upper Mount Type:
Stem
Internal Design:
Monotube
Lower Mount Type:
Eye 14.4mm
Reservoir:
No
Adjustable Damping:
Non-Adjustable
Body Design:
Smooth Body (Non-Coilover)
Collapsed Length (MM):
420.0
Extended Length (MM):
583.5
Extended Length (IN):
22.97
Collapsed Length (IN):
16.54
Body Diameter (ID):
46mm
Grade Type:
Performance
Mounting Hardware Included:
Yes
Shaft Diameter:
14mm
Travel Length:
6.41
Compressed Length:
420.0
Extended Length:
583.5
PartType:
Shocks / Struts
Segment:
Light Truck
Prop 65 (Y/N):
Y
Prop 65 - Short Label:
WARNING: Cancer & Reproductive Harm - www.P65Warnings.ca.gov
Installation
Product Fitments
