Bilstein

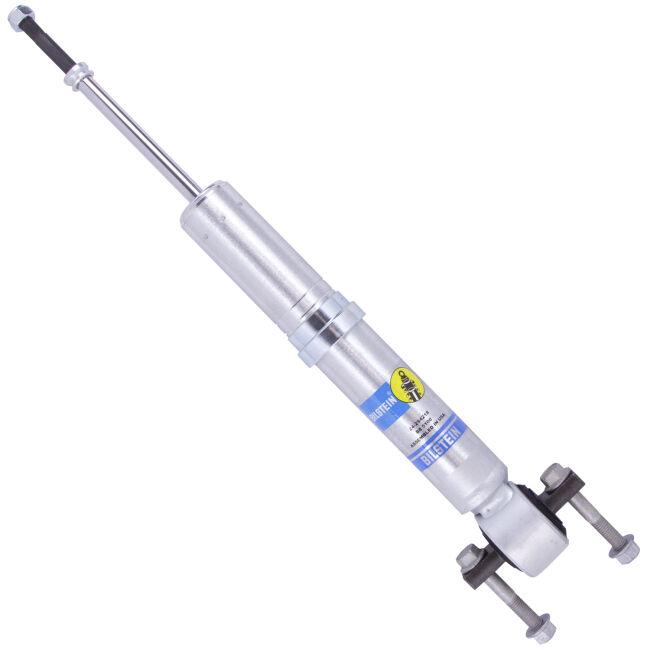

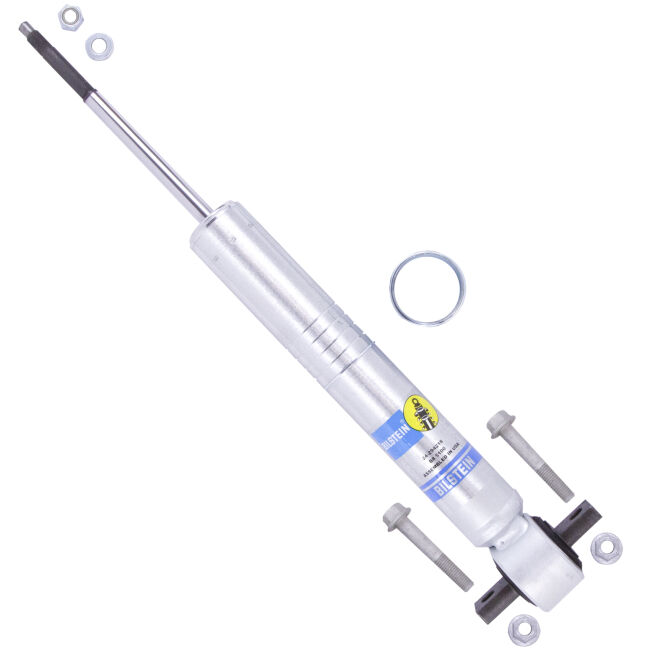

B8 5100 (Ride Height Adjustable) - Suspension Shock Absorber

$168.00 Price Match Request Badge

By Bilstein -

#BIL 24294218

Your Vehicle

Select Your Delivery Method

Description

Bilstein B8 5100 (Ride Height Adjustable) shock absorbers are designed for trucks and SUVs with a front OE coilover style suspension. Multiple snap-ring grooves in the body allow for different spring seat positions, providing 0-3 inches of front lift with OE springs (depending on application). The monotube shock absorbers feature a 46mm digressive piston a with self-adjusting deflective disc valve setting.  Bilstein B8 5100 (Ride Height Adjustable) shock absorbers provide increased wheel travel and improved handling. Utilizing a B8 5100 (Ride Height Adjustable) shock absorber is the easiest way to level out your vehicle.

Specifications

FAB:

46mm monotube design ensures consistent, fade-free performance in all conditions

Piston Diameter:

46mm

Spring Max Travel (IN):

4.67

Stroke/Travel Length (IN):

4.67

Stroke/Travel Length (mm):

118.6

Title:

Bilstein Shock Absorbers

Active or Passive Suspension:

Passive

Adjustable Compression:

No

Adjustable Rebound:

No

Adjustable Ride Height:

Yes

Series:

B8 5100 (Ride Height Adjustable)

Finish:

Zinc Plated

Boot Included:

No

Spring Seat Included:

No - Reuse OEM

Upper Mount Type:

Stem

Internal Design:

Monotube

Lower Mount Type:

Crossbar

Reservoir:

No

Adjustable Damping:

Non-Adjustable

Body Design:

Snap Ring Grooved Body (Coilover)

Collapsed Length (MM):

370.5

Extended Length (MM):

489.2

Extended Length (IN):

19.26

Collapsed Length (IN):

14.59

Body Diameter (ID):

46mm

Grade Type:

Performance

Mounting Hardware Included:

Yes

Shaft Diameter:

14mm

Travel Length:

4.67

Compressed Length:

370.5

Extended Length:

489.2

PartType:

Shocks / Struts

Segment:

Light Truck

Prop 65 (Y/N):

Y

Prop 65 - Short Label:

WARNING: Cancer & Reproductive Harm - www.P65Warnings.ca.gov

Installation

BILE4-WM5-Y670A00_3.pdf

Product Fitments

2019-2023 Ford Ranger Lariat
2019-2023 Ford Ranger XL
2019-2023 Ford Ranger XLT
