Bilstein

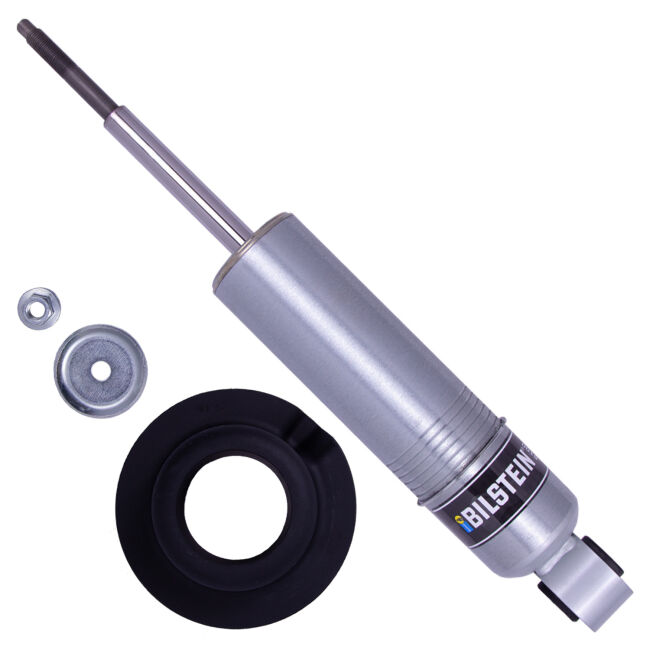

B8 6100 (Ride Height Adjustable) - Suspension Shock Absorber
By Bilstein -
#BIL 24311168
Description
Specifications
FAB:
Large 60mm body for increased oil capacity, cooling, and long-term durability
Piston Diameter:
60mm
Spring Max Travel (IN):
4.37
Stroke/Travel Length (IN):
4.37
Stroke/Travel Length (mm):
111.0
Title:
Bilstein Shock Absorbers
Active or Passive Suspension:
Passive
Adjustable Compression:
No
Adjustable Rebound:
No
Adjustable Ride Height:
Yes
Series:
B8 6100 (Ride Height Adjustable)
Finish:
Zinc Plated
Boot Included:
No
Spring Seat Included:
Yes
Upper Mount Type:
Stem
Internal Design:
Monotube
Lower Mount Type:
Eye 14.1mm
Reservoir:
No
Adjustable Damping:
Non-Adjustable
Body Design:
Snap Ring Grooved Body (Coilover)
Collapsed Length (MM):
278.0
Extended Length (MM):
389.0
Extended Length (IN):
15.31
Collapsed Length (IN):
10.94
Body Diameter (ID):
60mm
Grade Type:
Performance

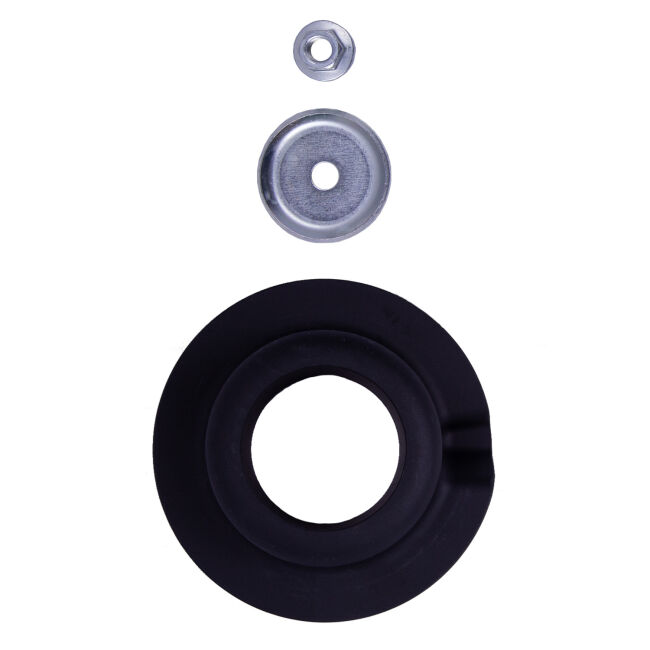

Mounting Hardware Included:
Yes
Shaft Diameter:
18mm
Travel Length:
4.37
Compressed Length:
278.0
Extended Length:
389.0
PartType:
Shocks / Struts
Segment:
Light Truck
Prop 65 (Y/N):
Y
Prop 65 - Short Label:
WARNING: Cancer & Reproductive Harm - www.P65Warnings.ca.gov
Installation
Product Fitments
