Bilstein

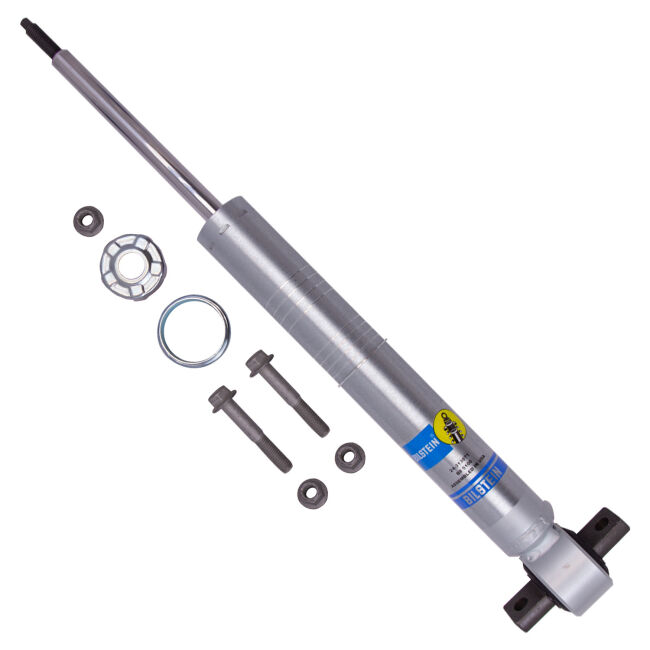

B8 5100 (Ride Height Adjustable) - Suspension Shock Absorber
By Bilstein -
#BIL 24313971
Description
Specifications
FAB:
46mm monotube design ensures consistent, fade-free performance in all conditions
Piston Diameter:
46mm
Spring Max Travel (IN):
6.18
Stroke/Travel Length (IN):
6.18
Stroke/Travel Length (mm):
157.0
Title:
Bilstein Shock Absorbers
Active or Passive Suspension:
Passive
Adjustable Compression:
No
Adjustable Rebound:
No
Adjustable Ride Height:
Yes
Series:
B8 5100 (Ride Height Adjustable)
Finish:
Zinc Plated
Boot Included:
No
Spring Seat Included:
No - Reuse OEM
Upper Mount Type:
Stem
Internal Design:
Monotube
Lower Mount Type:
Crossbar
Reservoir:
No
Adjustable Damping:
Non-Adjustable
Body Design:
Snap Ring Grooved Body (Coilover)
Collapsed Length (MM):
422.2
Extended Length (MM):
579.2
Extended Length (IN):
22.80
Collapsed Length (IN):
16.62
Body Diameter (ID):
46mm
Grade Type:
Performance

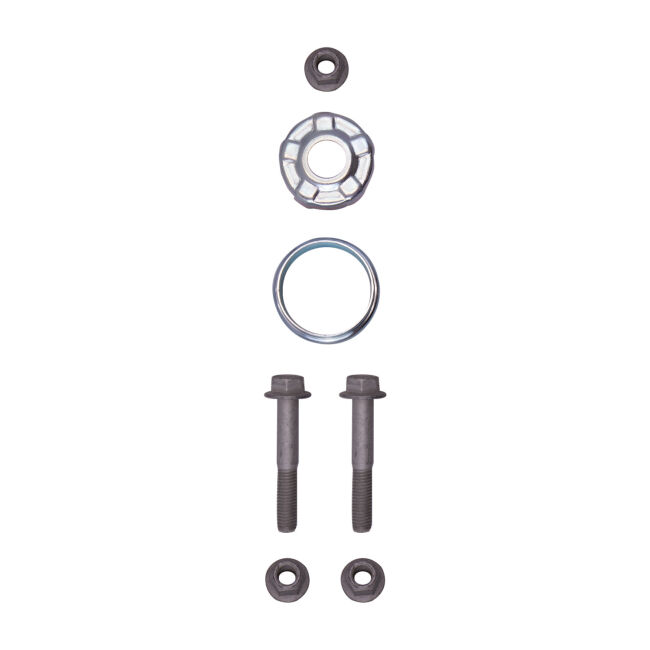

Mounting Hardware Included:
Yes
Shaft Diameter:
18mm
Travel Length:
6.18
Compressed Length:
422.2
Extended Length:
579.2
PartType:
Shocks / Struts
Segment:
Light Truck
Prop 65 (Y/N):
Y
Prop 65 - Short Label:
WARNING: Cancer & Reproductive Harm - www.P65Warnings.ca.gov
Installation
Product Fitments
