Bilstein

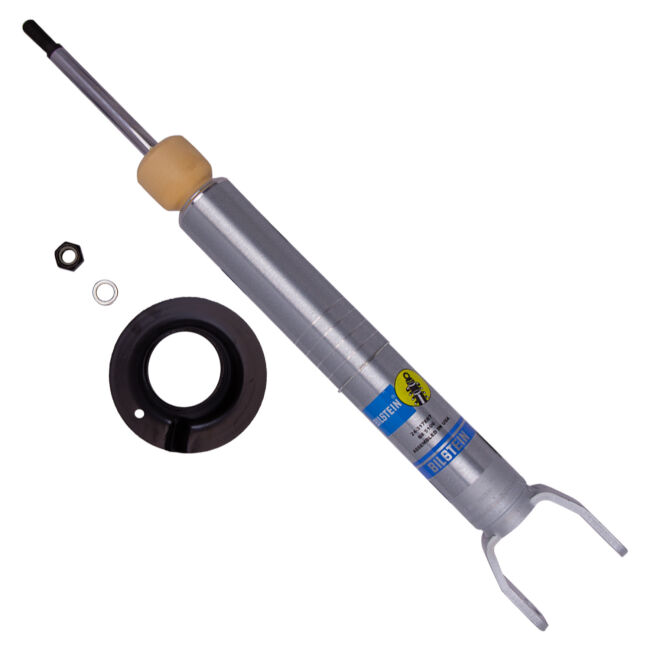

B8 5100 (Ride Height Adjustable) - Suspension Shock Absorber

FAB:

46mm monotube design ensures consistent, fade-free performance in all conditions

Piston Diameter:

46mm

Spring Max Travel (IN):

6.34

Stroke/Travel Length (IN):

6.34

Stroke/Travel Length (mm):

161.0

Title:

Bilstein Shock Absorbers

Active or Passive Suspension:

Passive

Adjustable Compression:

No

Adjustable Rebound:

No

Adjustable Ride Height:

Yes

Series:

B8 5100 (Ride Height Adjustable)

Finish:

Zinc Plated

Boot Included:

No

Spring Seat Included:

Yes

Upper Mount Type:

Stem

Internal Design:

Monotube

Lower Mount Type:

Clevis

Reservoir:

No

Adjustable Damping:

Non-Adjustable

Body Design:

Snap Ring Grooved Body (Coilover)

Collapsed Length (MM):

384.0

Extended Length (MM):

545.2

Extended Length (IN):

21.46

Collapsed Length (IN):

15.12

Body Diameter (ID):

46mm

Grade Type:

Performance

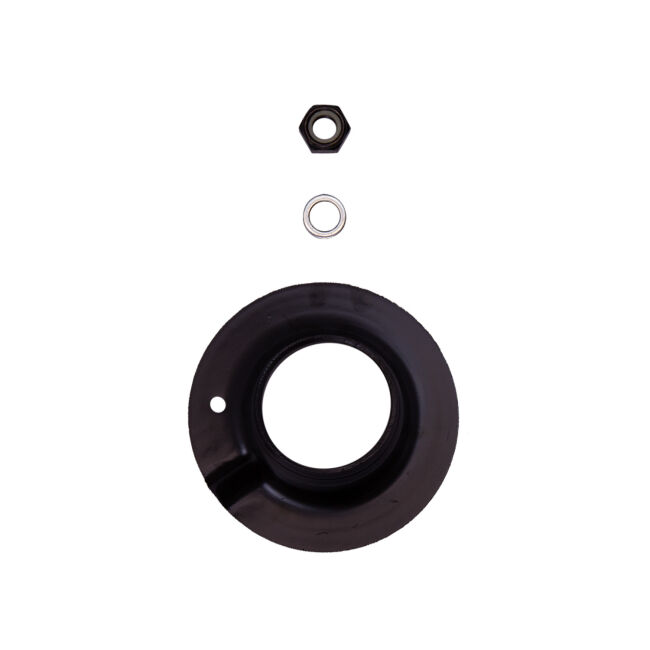

Mounting Hardware Included:

Yes

Shaft Diameter:

14mm

Travel Length:

6.34

Compressed Length:

384.0

Extended Length:

545.2

PartType:

Shocks / Struts

Segment:

Light Truck

Prop 65 (Y/N):

Y

Prop 65 - Short Label:

WARNING: Cancer & Reproductive Harm - www.P65Warnings.ca.gov
