Bilstein

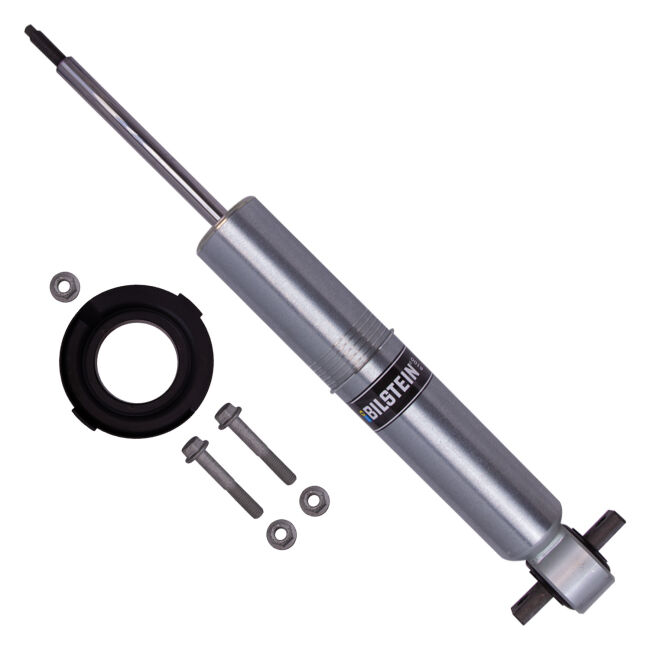

B8 6100 (Ride Height Adjustable) - Suspension Shock Absorber

FAB:

Large 60mm body for increased oil capacity, cooling, and long-term durability

FAB:

60mm digressive piston improves ride comfort and control over rough terrain

Piston Diameter:

60mm

Spring Max Travel (IN):

6.18

Stroke/Travel Length (IN):

6.18

Stroke/Travel Length (mm):

157.0

Title:

Bilstein Shock Absorbers

Active or Passive Suspension:

Passive

Adjustable Compression:

No

Adjustable Rebound:

No

Adjustable Ride Height:

Yes

Series:

B8 6100 (Ride Height Adjustable)

Finish:

Zinc Plated

Boot Included:

No

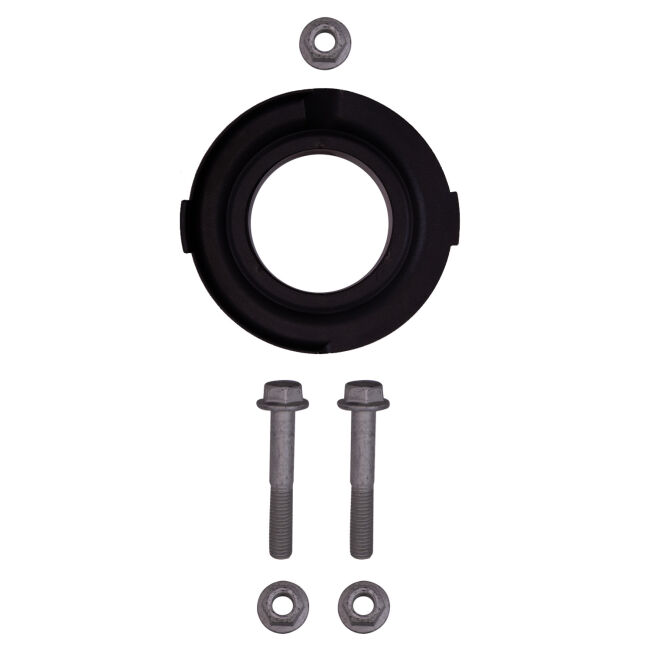

Spring Seat Included:

Yes

Upper Mount Type:

Stem

Internal Design:

Monotube

Lower Mount Type:

Crossbar

Reservoir:

No

Adjustable Damping:

Non-Adjustable

Body Design:

Snap Ring Grooved Body (Coilover)

Collapsed Length (MM):

422.2

Extended Length (MM):

579.2

Extended Length (IN):

22.80

Collapsed Length (IN):

16.62

Body Diameter (ID):

60mm

Grade Type:

Performance

Mounting Hardware Included:

Yes

Shaft Diameter:

18mm

Travel Length:

6.18

Compressed Length:

422.2

Extended Length:

579.2

PartType:

Shocks / Struts

Segment:

Light Truck

Prop 65 (Y/N):

Y
