Bilstein

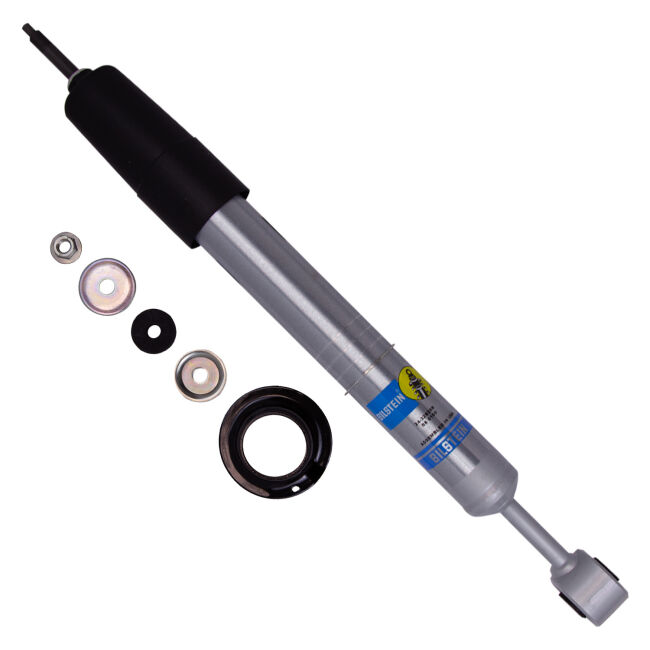

B8 5100 (Ride Height Adjustable) - Suspension Shock Absorber
By Bilstein -
#BIL 24328258
Description
Specifications
FAB:
46mm monotube design ensures consistent, fade-free performance in all conditions
Piston Diameter:
46mm
Spring Max Travel (IN):
4.81
Stroke/Travel Length (IN):
4.81
Stroke/Travel Length (mm):
122.2
Title:
Bilstein Shock Absorbers
Active or Passive Suspension:
Passive
Adjustable Compression:
No
Adjustable Rebound:
No
Adjustable Ride Height:
Yes
Series:
B8 5100 (Ride Height Adjustable)
Finish:
Zinc Plated
Boot Included:
Black Straight
Spring Seat Included:
Yes
Upper Mount Type:
Stem
Internal Design:
Monotube
Lower Mount Type:
Eye 14.2mm
Reservoir:
No
Adjustable Damping:
Non-Adjustable
Body Design:
Snap Ring Grooved Body (Coilover)
Collapsed Length (MM):
444.6
Extended Length (MM):
566.8
Extended Length (IN):
22.31
Collapsed Length (IN):
17.50
Body Diameter (ID):
46mm
Grade Type:
Performance

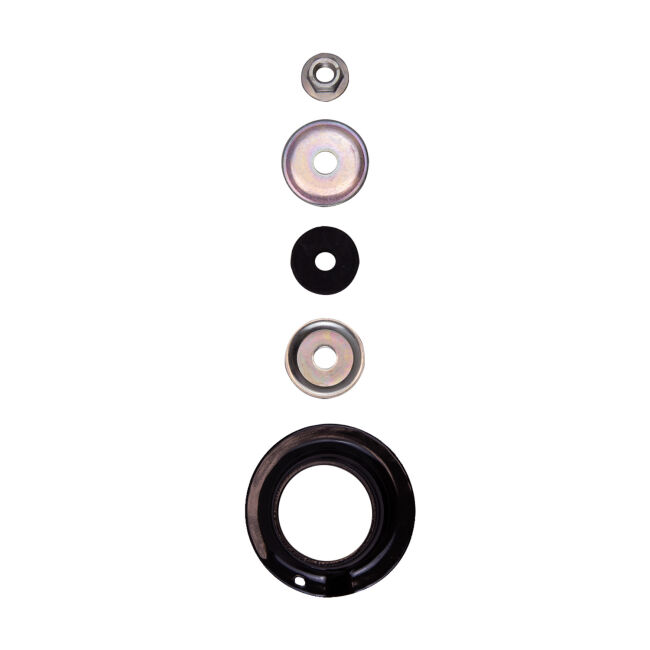

Mounting Hardware Included:
Yes
Shaft Diameter:
14mm
Travel Length:
4.81
Compressed Length:
444.6
Extended Length:
566.8
PartType:
Shocks / Struts
Segment:
Light Truck
Prop 65 (Y/N):
Y
Prop 65 - Short Label:
WARNING: Cancer & Reproductive Harm - www.P65Warnings.ca.gov
