Description
Specifications
FAB:
46mm monotube design ensures consistent, fade-free performance in all conditions
Piston Diameter:
46mm
Spring Max Travel (IN):
9.81
Stroke/Travel Length (IN):
9.81
Stroke/Travel Length (mm):
249.2
Title:

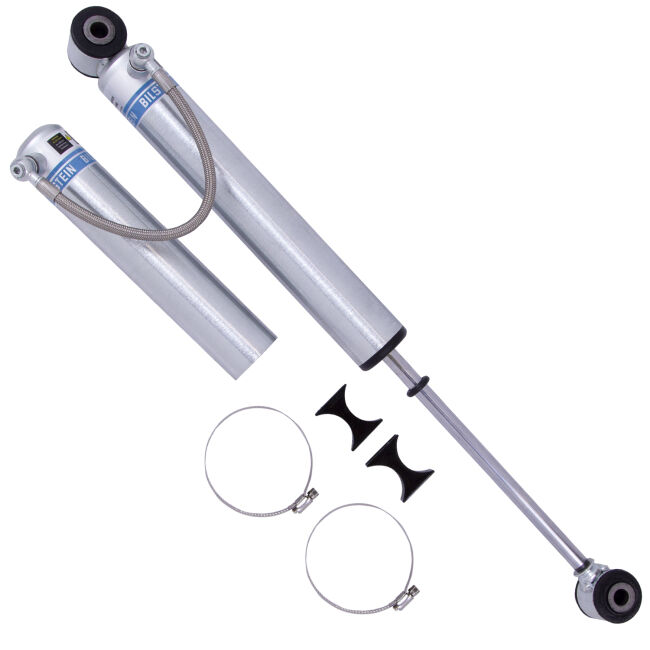

Bilstein Shock Absorbers
Active or Passive Suspension:
Passive
Adjustable Compression:
No
Adjustable Rebound:
No
Adjustable Ride Height:
No
Series:
B8 5160
Finish:
Zinc Plated
Boot Included:
No
Spring Seat Included:
No
Upper Mount Type:
Eye 14mm
Internal Design:
Monotube
Lower Mount Type:
Eye 14mm
Reservoir:
Yes
Adjustable Damping:
Non-Adjustable
Body Design:
Smooth Body (Non-Coilover)
Collapsed Length (MM):
380.0
Extended Length (MM):
629.2
Extended Length (IN):
24.77
Collapsed Length (IN):
14.96
Body Diameter (ID):
46mm

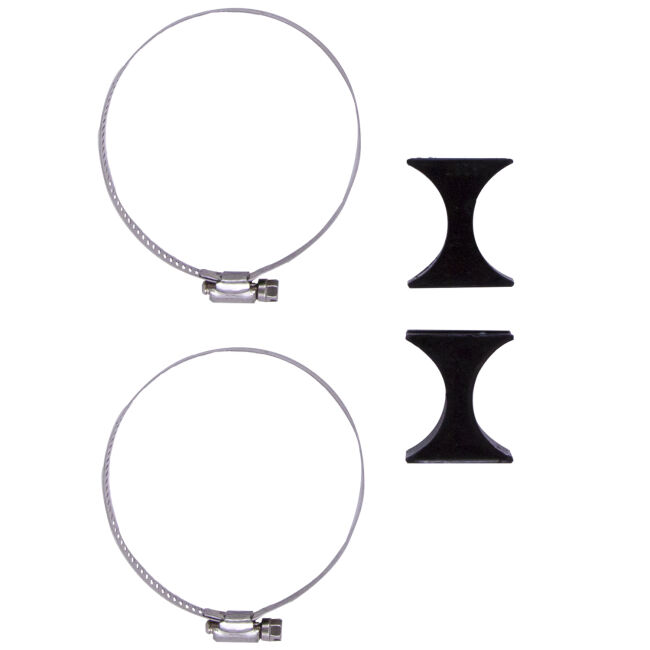

Optional Reservoir Clamp:
11-176015
Billet Reservoir Clamp Included:
No
Grade Type:
Performance
Mounting Hardware Included:
Yes
Shaft Diameter:
14mm
Travel Length:
9.81
Compressed Length:
380.0
Extended Length:
629.2
PartType:
Shocks / Struts
Segment:
Light Truck
Prop 65 (Y/N):
Y
Prop 65 - Short Label:
WARNING: Cancer & Reproductive Harm - www.P65Warnings.ca.gov
