Bilstein

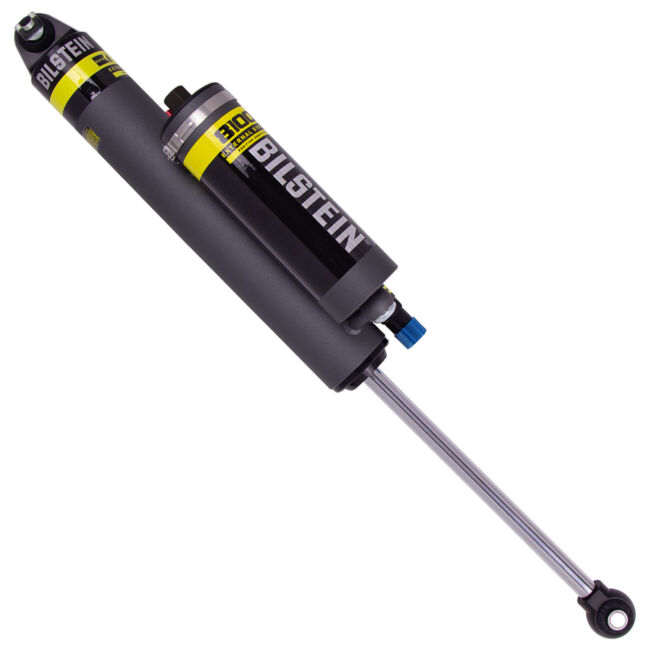

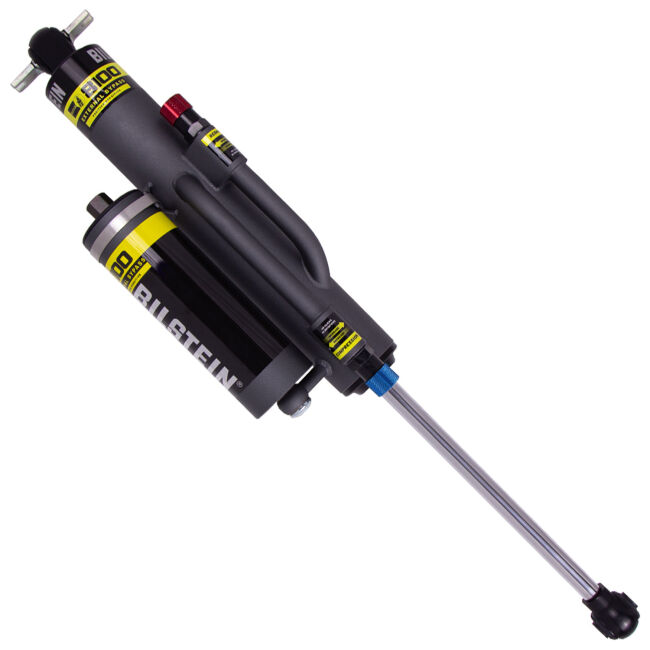

B8 8100 (Bypass) - Suspension Shock Absorber

FAB:

Dual tube external bypass offers position sensitive damping with independent adjustment for rebound and compression

Piston Diameter:

60mm

Title:

Bilstein Shock Absorbers

Active or Passive Suspension:

Passive

Adjustable Compression:

Yes

Adjustable Rebound:

Yes

Adjustable Ride Height:

No

Series:

B8 8100 (Bypass)

Finish:

EVO Grey

Boot Included:

No

Spring Seat Included:

No

Upper Mount Type:

Bar Pin

Internal Design:

Monotube

Lower Mount Type:

Eye 12.1mm

Reservoir:

Yes

Adjustable Damping:

Double Adjustable Compression and Rebound with Click Adjuster Knobs

Body Design:

Bypass Body (Non-Coilover)

Collapsed Length (MM):

436.0

Extended Length (MM):

707.0

Extended Length (IN):

27.83

Collapsed Length (IN):

17.17

Body Diameter (ID):

60mm

Grade Type:

Performance

Mounting Hardware Included:

No

Shaft Diameter:

18mm

Travel Length:

10.66

Compressed Length:

436.0

Extended Length:

707.0

PartType:

Shocks / Struts

Segment:

Light Truck

Prop 65 (Y/N):

Y

Prop 65 - Short Label:

WARNING: Cancer & Reproductive Harm - www.P65Warnings.ca.gov
