Bilstein
B8 8100 (DSA) - Suspension Shock Absorber

$784.00 Price Match Request Badge

By Bilstein -

#BIL 25294071

Your Vehicle

Select Your Delivery Method

Description

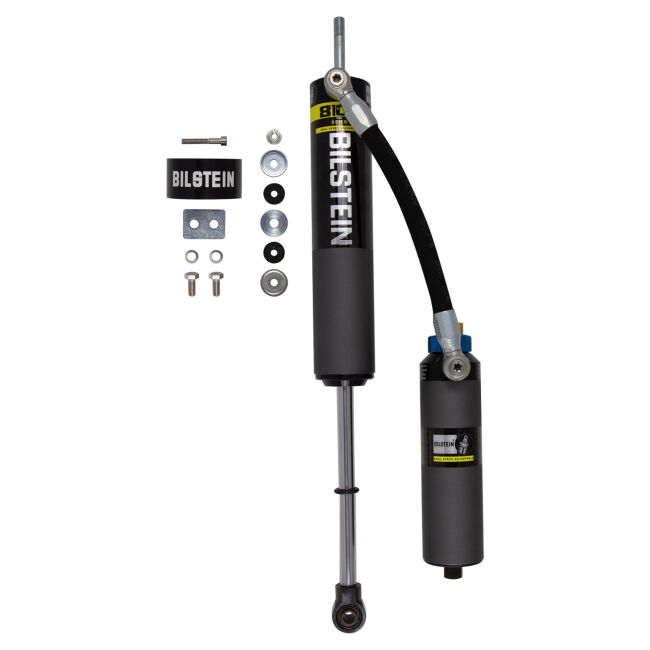

The Bilstein B8 8100 (DSA) reservoir shock absorber is an adjustable large bore 60mm (2.65" OD) direct fit solution for lifted trucks and SUVs. Constructed from aerospace quality billet components, the large 60mm ID shock body offers a higher oil volume capacity to control heat while tackling rough road surfaces over long distances. Click adjuster knobs allow easy and precise Dual Speed Adjustment of both low and high speed compression to tailor your ride to any surface. Each B8 8100 (DSA) offers a unique remote or piggyback reservoir solution for an easy, hassle free installation. These shock absorbers feature a monotube design for consistent fade free performance and utilize velocity sensitive digressive valve settings which are tuned for each specific application. The large 60mm piston design offers more comfort and control in all driving conditions. The Bilstein B8 8100 (DSA) will allow you to tame the terrain in comfort.

Specifications

FAB:

60mm large bore digressive piston offers a greater range of tunability and delivers exceptional comfort without sacrificing control

Piston Diameter:

60mm

Title:

Bilstein Shock Absorbers

Active or Passive Suspension:

Passive

Adjustable Compression:

Yes

Adjustable Rebound:

No

Adjustable Ride Height:

No

Series:

B8 8100 (DSA)

Finish:

EVO Grey

Boot Included:

No

Spring Seat Included:

No

Upper Mount Type:

Stem

Internal Design:

Monotube

Lower Mount Type:

Eye 12mm

Reservoir:

Yes

Adjustable Damping:

Click Adjusters for High and Low Speed Compression

Body Design:

Smooth Body (Non-Coilover)

Collapsed Length (MM):

362.0

Extended Length (MM):

579.0

Extended Length (IN):

22.80

Collapsed Length (IN):

14.25

Body Diameter (ID):

60mm

Grade Type:

Performance

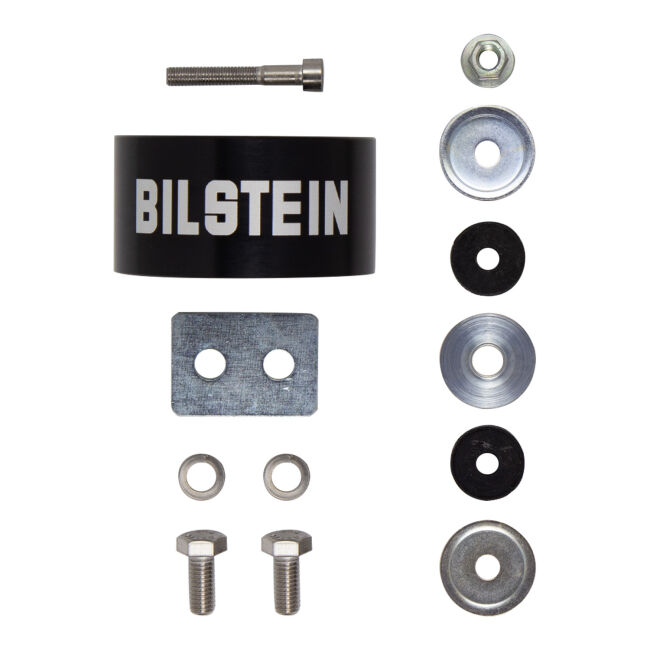

Mounting Hardware Included:

Yes

Shaft Diameter:

18mm

Travel Length:

8.55

Compressed Length:

362.0

Extended Length:

579.0

PartType:

Shocks / Struts

Segment:

Light Truck

Prop 65 (Y/N):

Y

Prop 65 - Short Label:

WARNING: Cancer & Reproductive Harm - www.P65Warnings.ca.gov

Installation

BILE-WM05-0000029_2.pdf

Product Fitments

2005-2015 Toyota Tacoma Base
2016-2023 Toyota Tacoma Limited
2021-2022 Toyota Tacoma Nightshade
2005-2015 Toyota Tacoma Pre Runner
2016-2023 Toyota Tacoma SR
2016-2023 Toyota Tacoma SR5
2021 Toyota Tacoma Trail
2023 Toyota Tacoma Trail Special Edition
2016-2023 Toyota Tacoma TRD Off-Road
2015 Toyota Tacoma TRD Pro
2017-2023 Toyota Tacoma TRD Pro
2016-2023 Toyota Tacoma TRD Sport
