Bilstein
B8 5160 - Suspension Shock Absorber

$289.00 Price Match Request Badge

By Bilstein -

#BIL 25311273

Your Vehicle

Select Your Delivery Method

Description

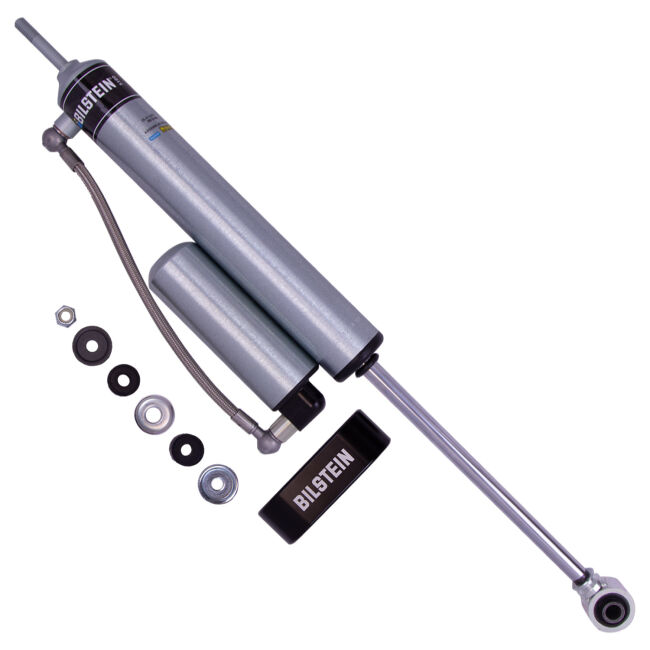

Bilstein B8 5160 remote reservoir shock absorbers are designed as a direct fit solution for lifted trucks and SUVs. The remote reservoir will offer increased cooling capacity and wheel travel to optimize overall performance compared to a traditional shock absorber. These shock absorbers feature a monotube design for consistent fade free performance and utilize velocity sensitive digressive valve settings which are tuned for each specific application. Each shock absorber is fitted with a unique 360 degree swivel banjo hose fitting and an attractive billet reservoir mount where applicable providing a clean, low profile installation. B8 5160 remote reservoir shock absorbers will increase overall durability of your vehicle allowing you to conquer the harshest of off-road environments.

Specifications

FAB:

Self-adjusting deflective disc valving reacts immediately to surface changes enabling maximum vehicle control

Piston Diameter:

46mm

Spring Max Travel (IN):

9.42

Stroke/Travel Length (IN):

9.42

Stroke/Travel Length (mm):

239.3

Title:

Bilstein Shock Absorbers

Active or Passive Suspension:

Passive

Adjustable Compression:

No

Adjustable Rebound:

No

Adjustable Ride Height:

No

Series:

B8 5160

Finish:

Zinc Plated

Boot Included:

No

Spring Seat Included:

No

Upper Mount Type:

Stem

Internal Design:

Monotube

Lower Mount Type:

Eye 12mm

Reservoir:

Yes

Adjustable Damping:

Non-Adjustable

Body Design:

Smooth Body (Non-Coilover)

Collapsed Length (MM):

351.5

Extended Length (MM):

590.7

Extended Length (IN):

23.26

Collapsed Length (IN):

13.84

Body Diameter (ID):

46mm

Billet Reservoir Clamp Included:

Yes

Grade Type:

Performance

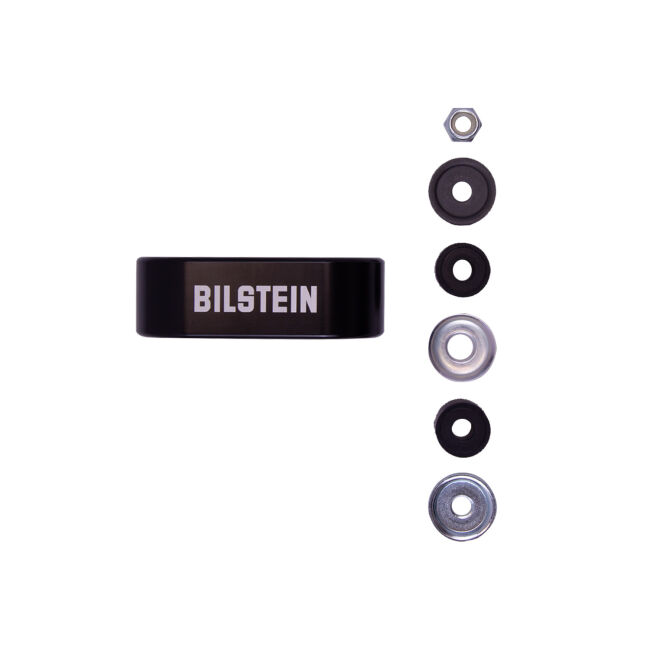

Mounting Hardware Included:

Yes

Shaft Diameter:

14mm

Travel Length:

9.42

Compressed Length:

351.5

Extended Length:

590.7

PartType:

Shocks / Struts

Segment:

Light Truck

Prop 65 (Y/N):

Y

Prop 65 - Short Label:

WARNING: Cancer & Reproductive Harm - www.P65Warnings.ca.gov

Installation

BILE4-WM5-Y749A00.pdf

Product Fitments

2000-2006 Toyota Tundra Base
2000-2006 Toyota Tundra Limited
2000-2006 Toyota Tundra SR5
