Bilstein

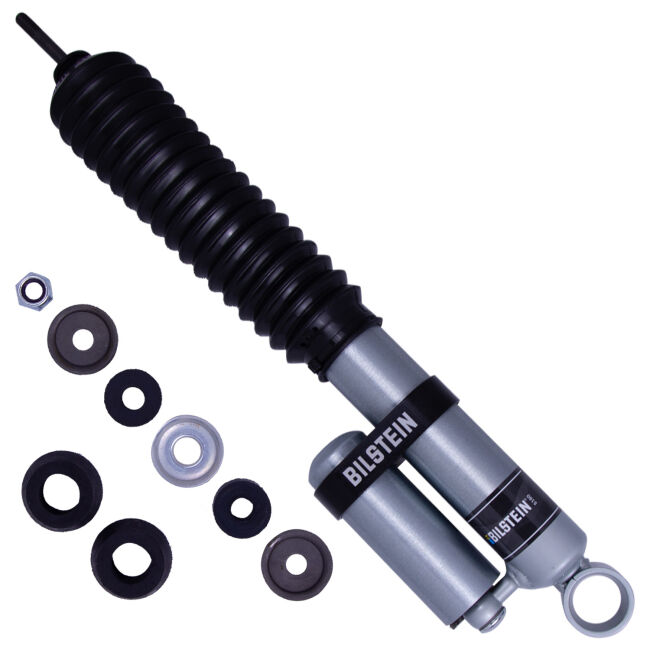

B8 5160 - Suspension Shock Absorber

$289.00 Price Match Request Badge

By Bilstein -

#BIL 25311303

Your Vehicle

Select Your Delivery Method

Description

Bilstein B8 5160 remote reservoir shock absorbers are designed as a direct fit solution for lifted trucks and SUVs. The remote reservoir will offer increased cooling capacity and wheel travel to optimize overall performance compared to a traditional shock absorber. These shock absorbers feature a monotube design for consistent fade free performance and utilize velocity sensitive digressive valve settings which are tuned for each specific application. Each shock absorber is fitted with a unique 360 degree swivel banjo hose fitting and an attractive billet reservoir mount where applicable providing a clean, low profile installation. B8 5160 remote reservoir shock absorbers will increase overall durability of your vehicle allowing you to conquer the harshest of off-road environments.

Specifications

FAB:

46mm monotube design ensures consistent, fade-free performance in all conditions

Piston Diameter:

46mm

Spring Max Travel (IN):

7.79

Stroke/Travel Length (IN):

7.79

Stroke/Travel Length (mm):

197.9

Title:

Bilstein Shock Absorbers

Active or Passive Suspension:

Passive

Adjustable Compression:

No

Adjustable Rebound:

No

Adjustable Ride Height:

No

Series:

B8 5160

Finish:

Zinc Plated

Boot Included:

Black Bellows

Spring Seat Included:

No

Upper Mount Type:

Stem

Internal Design:

Monotube

Lower Mount Type:

Eye 19mm

Reservoir:

Yes

Adjustable Damping:

Non-Adjustable

Body Design:

Smooth Body (Non-Coilover)

Collapsed Length (MM):

328.0

Extended Length (MM):

525.7

Extended Length (IN):

20.70

Collapsed Length (IN):

12.91

Body Diameter (ID):

46mm

Billet Reservoir Clamp Included:

Yes

Grade Type:

Performance

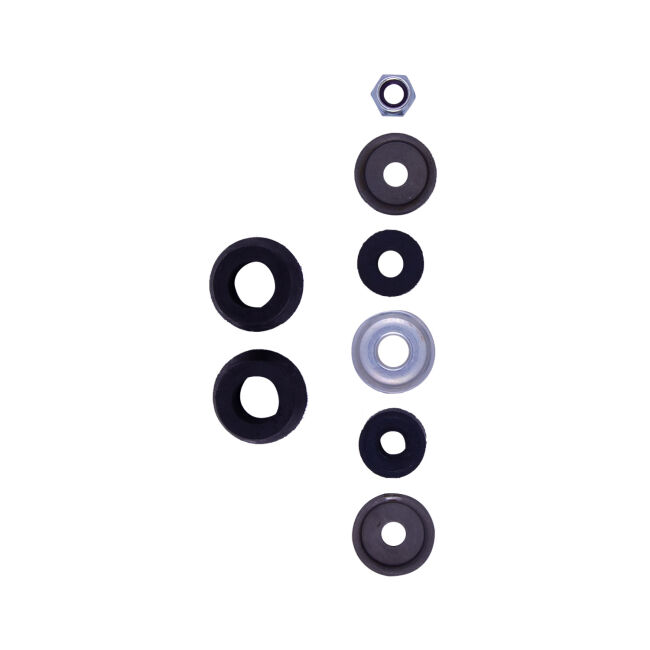

Mounting Hardware Included:

Yes

Shaft Diameter:

14mm

Travel Length:

7.79

Compressed Length:

328.0

Extended Length:

525.7

PartType:

Shocks / Struts

Segment:

Light Truck

Prop 65 (Y/N):

Y

Prop 65 - Short Label:

WARNING: Cancer & Reproductive Harm - www.P65Warnings.ca.gov

Installation

BILE4-WM5-Y537A00_3.pdf

Product Fitments

1996-2001 Toyota 4Runner Base
1996-2002 Toyota 4Runner Limited
1996-2002 Toyota 4Runner SR5
