Bilstein

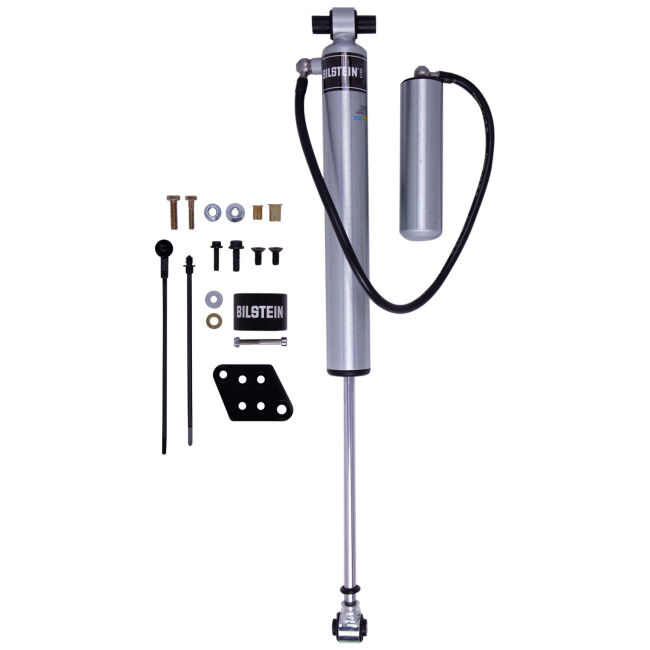

B8 5160 - Suspension Shock Absorber

FAB:

46mm monotube design ensures consistent, fade-free performance in all conditions

Piston Diameter:

46mm

Spring Max Travel (IN):

10.50

Stroke/Travel Length (IN):

10.50

Stroke/Travel Length (mm):

266.7

Title:

Bilstein Shock Absorbers

Active or Passive Suspension:

Passive

Adjustable Compression:

No

Adjustable Rebound:

No

Adjustable Ride Height:

No

Series:

B8 5160

Finish:

Zinc Plated

Boot Included:

No

Spring Seat Included:

No

Upper Mount Type:

Eye 12.8mm

Internal Design:

Monotube

Lower Mount Type:

Eye 12.8mm

Reservoir:

Yes

Adjustable Damping:

Non-Adjustable

Body Design:

Smooth Body (Non-Coilover)

Collapsed Length (MM):

416.0

Extended Length (MM):

682.7

Extended Length (IN):

26.88

Collapsed Length (IN):

16.38

Body Diameter (ID):

46mm

Billet Reservoir Clamp Included:

Yes

Grade Type:

Performance

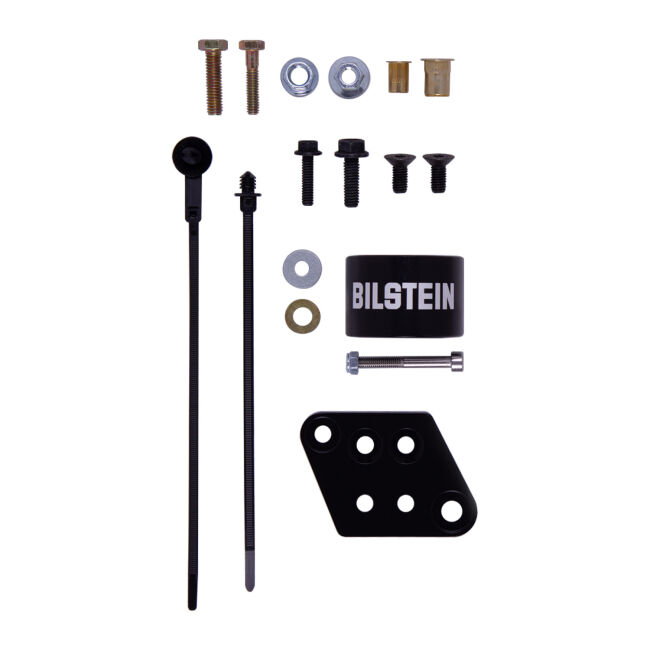

Mounting Hardware Included:

Yes

Shaft Diameter:

14mm

Travel Length:

10.50

Compressed Length:

416.0

Extended Length:

682.7

PartType:

Shocks / Struts

Segment:

Light Truck

Prop 65 (Y/N):

Y

Prop 65 - Short Label:

WARNING: Cancer & Reproductive Harm - www.P65Warnings.ca.gov
