Description
Specifications
FAB:
Self-adjusting deflective disc valving reacts immediately to surface changes enabling maximum vehicle control
Piston Diameter:
46mm
Spring Max Travel (IN):
10.50
Stroke/Travel Length (IN):
10.50
Stroke/Travel Length (mm):
266.7
Title:

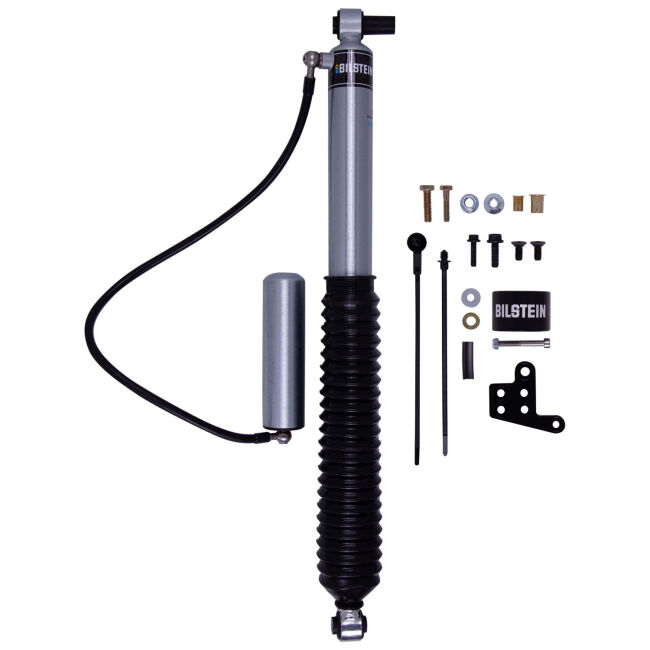

Bilstein Shock Absorbers
Active or Passive Suspension:
Passive
Adjustable Compression:
No
Adjustable Rebound:
No
Adjustable Ride Height:
No
Series:
B8 5160
Finish:
Zinc Plated
Boot Included:
No
Spring Seat Included:
No
Upper Mount Type:
Eye 12.8mm
Internal Design:
Monotube
Lower Mount Type:
Eye 12.8mm
Reservoir:
Yes
Adjustable Damping:
Non-Adjustable
Body Design:
Smooth Body (Non-Coilover)
Collapsed Length (MM):
416.0
Extended Length (MM):
682.7
Extended Length (IN):
26.88
Collapsed Length (IN):
16.38
Body Diameter (ID):
46mm
Billet Reservoir Clamp Included:
Yes
Grade Type:
Performance

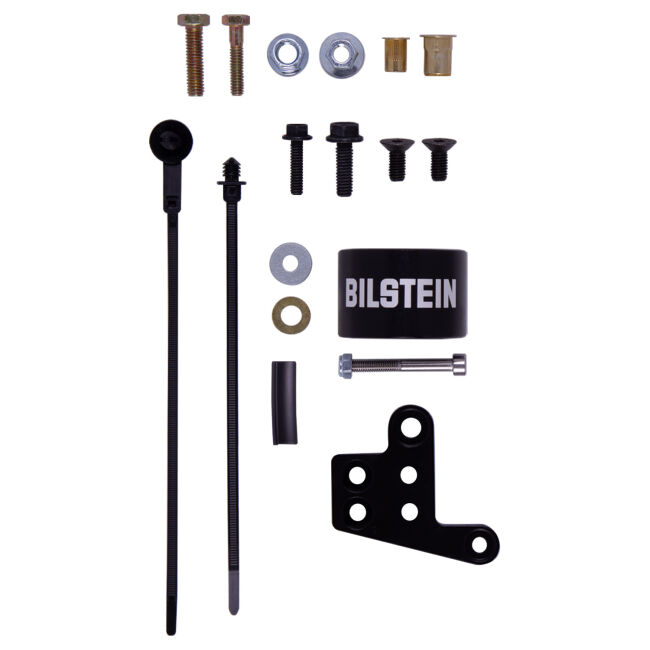

Mounting Hardware Included:
Yes
Shaft Diameter:
14mm
Travel Length:
10.50
Compressed Length:
416.0
Extended Length:
682.7
PartType:
Shocks / Struts
Segment:
Light Truck
Prop 65 (Y/N):
Y
Prop 65 - Short Label:
WARNING: Cancer & Reproductive Harm - www.P65Warnings.ca.gov
