FAB:
Patented digressive valving instantly reacts to changing surface conditions
Piston Diameter:
46mm
Spring Max Travel (IN):
10.06
Stroke/Travel Length (IN):
10.06
Stroke/Travel Length (mm):
255.5
Title:

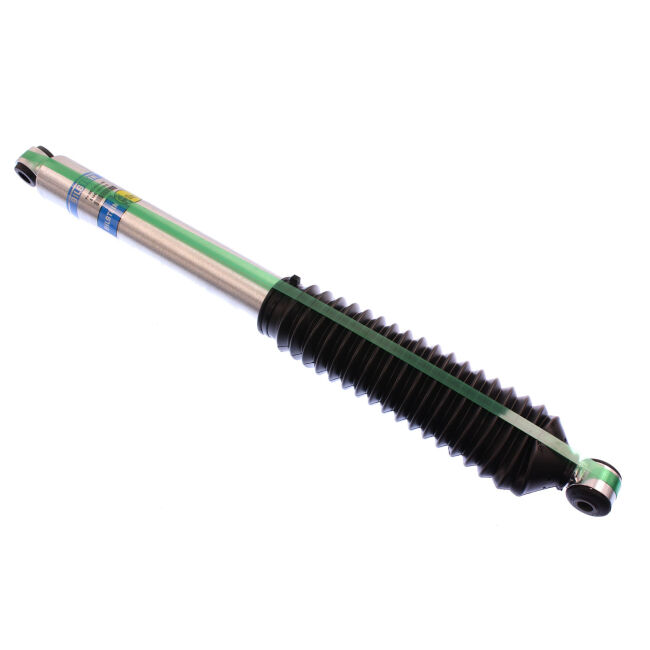

Bilstein Shock Absorbers
Active or Passive Suspension:
Passive
Adjustable Compression:
No
Adjustable Rebound:
No
Adjustable Ride Height:
No
Series:
B8 5100
Finish:
Zinc Plated
Boot Included:
Black Bellows
Spring Seat Included:
No
Upper Mount Type:
Eye 16mm
Internal Design:
Monotube
Lower Mount Type:
Eye 12.1mm
Reservoir:
No
Adjustable Damping:
Non-Adjustable
Body Design:
Smooth Body (Non-Coilover)
Collapsed Length (MM):
405.5
Extended Length (MM):
661.0
Extended Length (IN):
26.02
Collapsed Length (IN):
15.96
Body Diameter (ID):
46mm
Grade Type:
Performance
Mounting Hardware Included:
No
Shaft Diameter:
14mm
Travel Length:
10.06
Compressed Length:
405.5
Extended Length:
661.0
PartType:
Shocks / Struts
Segment:
Light Truck
Prop 65 (Y/N):
Y
Prop 65 - Short Label:
WARNING: Cancer & Reproductive Harm - www.P65Warnings.ca.gov
