Description
Specifications
FAB:
Patented digressive valving instantly reacts to changing surface conditions
FAB:
Vehicle specific tuning
Piston Diameter:
46mm
Spring Max Travel (IN):
11.78
Stroke/Travel Length (IN):
11.78
Stroke/Travel Length (mm):
299.2
Title:

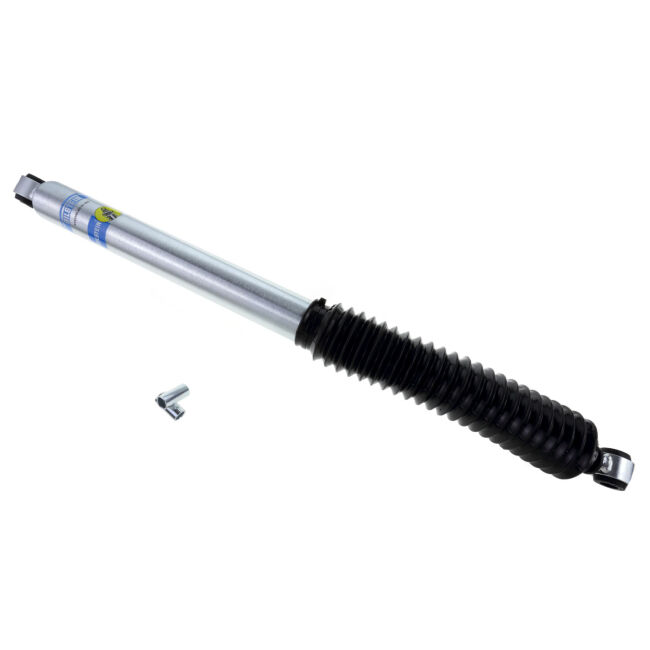

Bilstein Shock Absorbers
Active or Passive Suspension:
Passive
Adjustable Compression:
No
Adjustable Rebound:
No
Adjustable Ride Height:
No
Series:
B8 5125
Finish:
Zinc Plated
Boot Included:
Black Bellows
Spring Seat Included:
No
Upper Mount Type:
Eye 5/8in
Internal Design:
Monotube
Lower Mount Type:
Eye 5/8in
Reservoir:
No
Adjustable Damping:
Non-Adjustable
Body Design:
Smooth Body (Non-Coilover)
Compression @0.52m/s:
620
Collapsed Length (MM):
455.0
Extended Length (MM):
754.2
Rebound @0.52m/s:
2495
Extended Length (IN):
29.69
Collapsed Length (IN):
17.91
Body Diameter (ID):
46mm
Mount Type:
Eye-to-Eye
Collapsed Length (IN) Rounded:
18
Extended Length (IN) Rounded:
30
Grade Type:
Performance
Mounting Hardware Included:
Yes
Shaft Diameter:
14mm
Travel Length:
11.78
Compressed Length:
455.0
Extended Length:
754.2
PartType:
Shocks / Struts
Segment:
Light Truck
Prop 65 (Y/N):
Y
Prop 65 - Short Label:
WARNING: Cancer & Reproductive Harm - www.P65Warnings.ca.gov
