Description
Specifications
FAB:
46mm monotube design ensures consistent, fade-free performance in all conditions
Piston Diameter:
46mm
Spring Max Travel (IN):
8.43
Stroke/Travel Length (IN):
8.43
Stroke/Travel Length (mm):
214.1
Title:

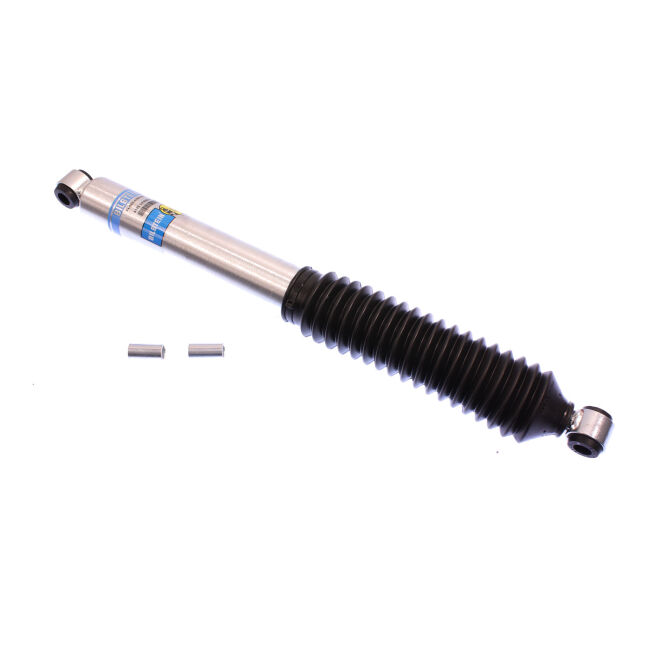

Bilstein Shock Absorbers
Active or Passive Suspension:
Passive
Adjustable Compression:
No
Adjustable Rebound:
No
Adjustable Ride Height:
No
Series:
B8 5125
Finish:
Zinc Plated
Boot Included:
Black Bellows
Spring Seat Included:
No
Upper Mount Type:
Eye 5/8in
Internal Design:
Monotube
Lower Mount Type:
Eye 5/8in
Reservoir:
No
Adjustable Damping:
Non-Adjustable
Body Design:
Smooth Body (Non-Coilover)
Compression @0.52m/s:
620
Collapsed Length (MM):
359.0
Extended Length (MM):
573.2
Rebound @0.52m/s:
2495
Extended Length (IN):
22.57
Collapsed Length (IN):
14.13
Body Diameter (ID):
46mm
Mount Type:
Eye-to-Eye
Collapsed Length (IN) Rounded:
14
Extended Length (IN) Rounded:
23
Grade Type:
Performance
Mounting Hardware Included:
Yes
Shaft Diameter:
14mm
Travel Length:
8.43
Compressed Length:
359.0
Extended Length:
573.2
PartType:
Shocks / Struts
Segment:
Light Truck
Prop 65 (Y/N):
Y
Prop 65 - Short Label:
WARNING: Cancer & Reproductive Harm - www.P65Warnings.ca.gov
Installation
Product Fitments
