Bilstein

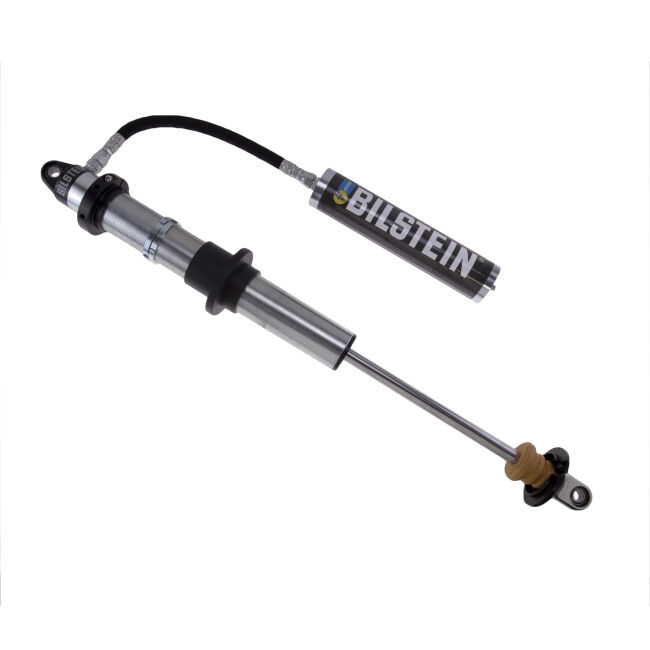

B8 8125 - Suspension Shock Absorber

$604.00 Price Match Request Badge

By Bilstein -

#BIL 33225555

Your Vehicle

Select Your Delivery Method

Description

Bilstein B8 8125 coilovers are engineered for the serious off-road enthusiast, available in both 46mm (2 inch) and 60mm (2.65 inch) sizes. Designed for use with dual-rate springs and available in a wide range of travel lengths, these performance coilovers are perfect for custom coilover suspension applications. Equipped with a competition designed, 3-stage seal pack, these coilovers withstand the harshest off-road environments. All B8 8125 coilovers include a 22mm hard chromed, case hardened piston rod which provides exceptional tensile strength and resistance to sand blasting and rock chipping. Incorporated remote reservoir combined with a high-temp hose provides consistent fade free performance under conditions of intense heat. The zinc coated threaded body allows for quick ride height adjustments and spring changes. Bilstein B8 8125 coilovers are completely owner rebuildable with replacement parts available from Bilstein. All components are machined to precise tolerances and made in the USA to insure high quality.

Specifications

FAB:

Available in 46mm and 60mm monotubes for consistent, fade-free performance

Piston Diameter:

60mm

Shaft Diameter (mm):

22.0

Spring Max Travel (IN):

14.00

Stroke/Travel Length (IN):

14.00

Stroke/Travel Length (mm):

355.6

Title:

Bilstein Shock Absorbers

Active or Passive Suspension:

Passive

Adjustable Compression:

No

Adjustable Rebound:

No

Adjustable Ride Height:

No

Series:

B8 8125

Finish:

Zinc Plated

Spring Seat Included:

Yes

Upper Mount Type:

Eye .5x1.5in

Internal Design:

Monotube

Lower Mount Type:

Eye .5x1.5in

Reservoir:

Yes

Body Design:

Threaded Body Screw Top (Coilover)

Compression @0.52m/s:

1100

Collapsed Length (MM):

584.2

Extended Length (MM):

939.8

Rebound @0.52m/s:

3700

Extended Length (IN):

37.00

Collapsed Length (IN):

23.00

Body Diameter (ID):

60mm

Mount Type:

Eye-to-Eye

Collapsed Length (IN) Rounded:

23

Optional Reservoir Clamp:

B4-KT1-Z292A00

Extended Length (IN) Rounded:

37

Grade Type:

Performance

Mounting Hardware Included:

No

Travel Length:

14.00

Compressed Length:

584.2

Extended Length:

939.8

PartType:

Shocks / Struts

Segment:

Motorsports

Prop 65 (Y/N):

Y

Prop 65 - Short Label:

WARNING: Cancer & Reproductive Harm - www.P65Warnings.ca.gov

Installation

BILB8_8125_Tech_Manual.pdf
