Bilstein
B8 5125 - Suspension Shock Absorber
$110.00
By Bilstein -
#BIL 33230405
Confirm this item fits below.
Your Vehicle
Description

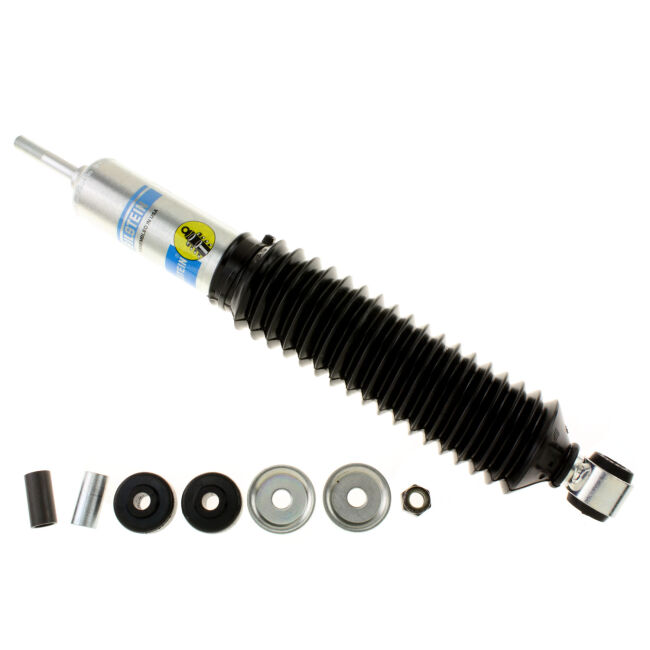

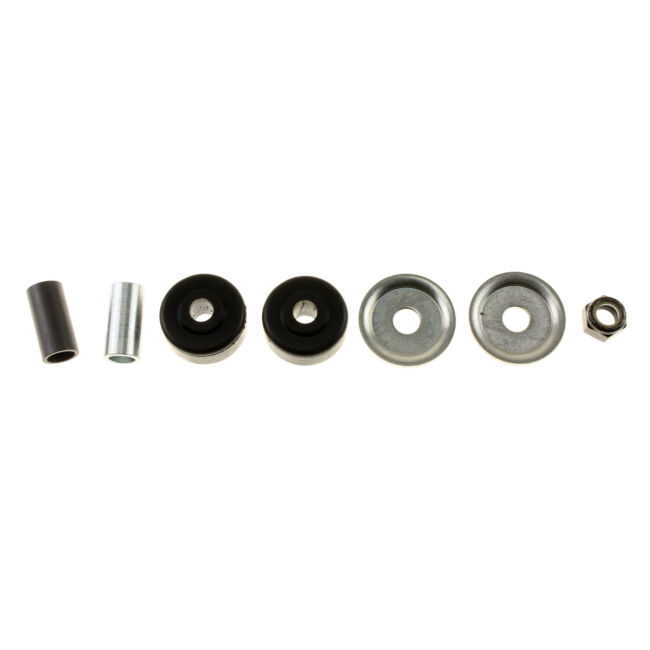

Bilstein B8 5125 shock absorbers are designed for custom applications and are a perfect solution for vehicles that do not have a direct Bilstein fitment. These high gas pressure monotube shock absorbers are sold by various lengths and valve rates to accommodate a wide range of uses and custom fitments. All B8 5125 shock absorbers come equipped with industry standard 5/8 inch hour glass bushings and are available in either an eye/eye or stem/eye mount configuration. The shock absorbers feature a 46mm piston with self-adjusting deflective disc valving. Bilstein B8 5125 shock absorbers are the ideal choice for custom suspension builders.
Specifications
Title:
Bilstein Shock Absorbers
Series:
B8 5125
California Proposition 65:
WARNING: Cancer & Reproductive Harm - www.P65Warnings.ca.gov
Finish:
Zinc Plated
Boot Included:
Black Bellows
Spring Seat Included:
No
Upper Mount Type:
Stem
Internal Design:
Monotube
Lower Mount Type:
Eye 5/8in
Reservoir:
No
Adjustable Damping:
Non-Adjustable
Body Design:
Smooth Body (Non-Coilover)
Compression @0.52m/s:
840
Collapsed Length (MM):
273.0
Extended Length (MM):
416.5
Rebound @0.52m/s:
3695
Extended Length (IN):
16.40
Collapsed Length (IN):
10.75
Body Diameter (ID):
46mm
Mount Type:
Stem-to-Eye
Collapsed Length (IN) Rounded:
11
Extended Length (IN) Rounded:
16
PartType:
Shocks / Struts
Prop65:
Y
Segment:
Light Truck
Installation
Product Fitments
No Applications
