Bilstein
B8 5125 - Suspension Shock Absorber

$118.00 Price Match Request Badge

By Bilstein -

#BIL 33230436

Your Vehicle

Select Your Delivery Method

Description

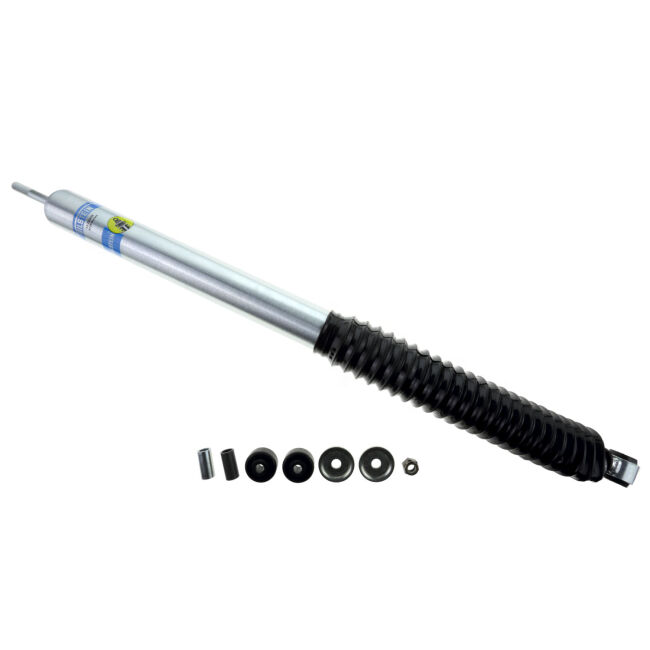

Bilstein B8 5125 shock absorbers are designed for custom applications and are a perfect solution for vehicles that do not have a direct Bilstein fitment. These high gas pressure monotube shock absorbers are sold by various lengths and valve rates to accommodate a wide range of uses and custom fitments. All B8 5125 shock absorbers come equipped with industry standard 5/8 inch hour glass bushings and are available in either an eye/eye or stem/eye mount configuration. The shock absorbers feature a 46mm piston with self-adjusting deflective disc valving. Bilstein B8 5125 shock absorbers are the ideal choice for custom suspension builders.

Specifications

FAB:

46mm monotube design ensures consistent, fade-free performance in all conditions

Piston Diameter:

46mm

Spring Max Travel (IN):

12.17

Stroke/Travel Length (IN):

12.17

Stroke/Travel Length (mm):

309.1

Title:

Bilstein Shock Absorbers

Active or Passive Suspension:

Passive

Adjustable Compression:

No

Adjustable Rebound:

No

Adjustable Ride Height:

No

Series:

B8 5125

Finish:

Zinc Plated

Boot Included:

Black Bellows

Spring Seat Included:

No

Upper Mount Type:

Stem

Internal Design:

Monotube

Lower Mount Type:

Eye 5/8in

Reservoir:

No

Adjustable Damping:

Non-Adjustable

Body Design:

Smooth Body (Non-Coilover)

Compression @0.52m/s:

620

Collapsed Length (MM):

475.9

Extended Length (MM):

785.1

Rebound @0.52m/s:

2495

Extended Length (IN):

30.91

Collapsed Length (IN):

18.74

Body Diameter (ID):

46mm

Mount Type:

Stem-to-Eye

Collapsed Length (IN) Rounded:

19

Extended Length (IN) Rounded:

31

Grade Type:

Performance

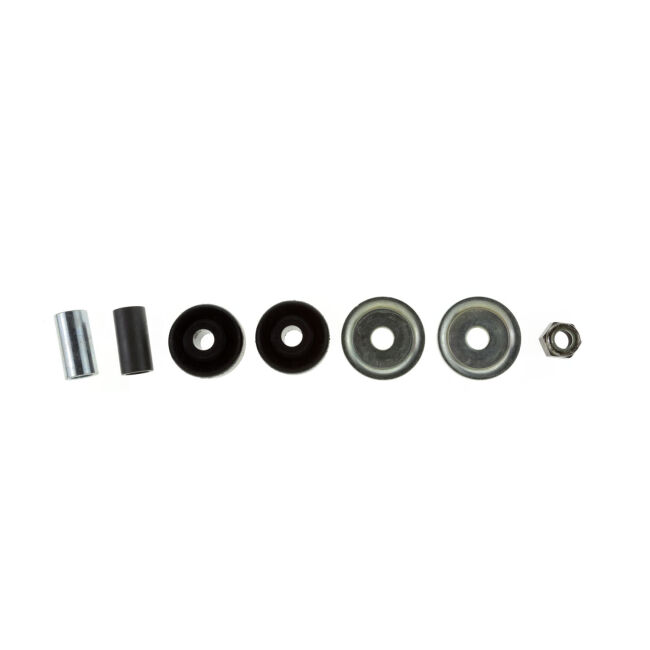

Mounting Hardware Included:

Yes

Shaft Diameter:

14mm

Travel Length:

12.17

Compressed Length:

475.9

Extended Length:

785.1

PartType:

Shocks / Struts

Segment:

Light Truck

Prop 65 (Y/N):

Y

Prop 65 - Short Label:

WARNING: Cancer & Reproductive Harm - www.P65Warnings.ca.gov

Installation

BILE4-WM5-Y217A00.pdf
