Bilstein

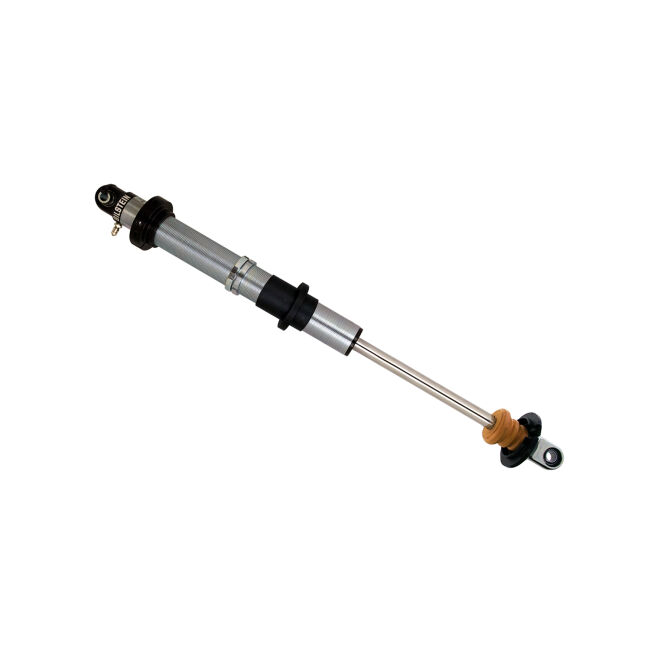

M 9200 (Coil Carrier) - Suspension Shock Absorber

$513.00 Price Match Request Badge

By Bilstein -

#BIL 33243542

Your Vehicle

Select Your Delivery Method

Description

Bilstein M 9200 (Coil Carrier) is designed specifically for professional off-road competition. M 9200 (Coil Carrier) utilize a fully adjustable dual rate spring hardware system that will compliment a wide array of industry standard 2.5 inch ID coilover springs. This coil carrier will not provide damping, but will sustain the weight of the vehicle at the adjusted ride height. These coil carriers are sold by length and are for custom applications. M 9200 (Coil Carrier) offers the ability to efficiently adjust spring rates to achieve the optimum performance.

Specifications

FAB:

Designed to hold the coils in place

Piston Diameter:

46mm

Shaft Diameter (mm):

22.0

Spring Max Travel (IN):

12.00

Stroke/Travel Length (IN):

12.00

Stroke/Travel Length (mm):

304.8

Title:

Bilstein Shock Absorbers

Active or Passive Suspension:

Passive

Adjustable Compression:

No

Adjustable Rebound:

No

Adjustable Ride Height:

Yes

Series:

M 9200 (Coil Carrier)

Finish:

Zinc Plated

Boot Included:

N/A

Spring Seat Included:

No

Upper Mount Type:

Eye .5x1.5in

Internal Design:

Monotube

Lower Mount Type:

Eye .5x1.5in

Reservoir:

Yes

Body Design:

Threaded Body (Coilover)

Compression @0.52m/s:

Coil Carrier No Valving

Collapsed Length (MM):

495.3

Extended Length (MM):

800.1

Rebound @0.52m/s:

Coil Carrier No Valving

Extended Length (IN):

31.50

Collapsed Length (IN):

19.50

Body Diameter (ID):

46mm

Mount Type:

Eye-to-Eye

Collapsed Length (IN) Rounded:

20

Optional Reservoir Clamp:

N/A

Extended Length (IN) Rounded:

32

Grade Type:

Performance

Mounting Hardware Included:

No

Travel Length:

12.00

Compressed Length:

495.3

Extended Length:

800.1

PartType:

Shocks / Struts

Segment:

Motorsports

Prop 65 (Y/N):

Y

Prop 65 - Short Label:

WARNING: Cancer & Reproductive Harm - www.P65Warnings.ca.gov

Installation

BILGeneric_instructions_02.pdf
