Bilstein

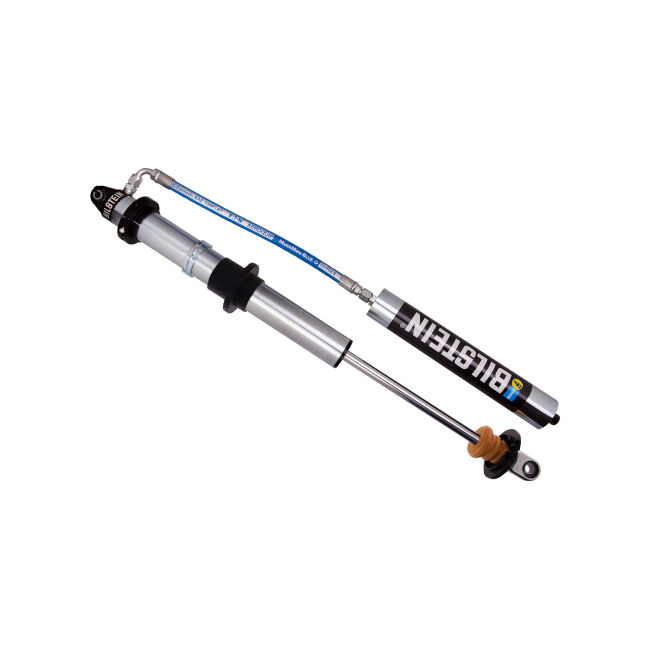

M 9200 (Coilover) - Suspension Shock Absorber

$781.00 Price Match Request Badge

By Bilstein -

#BIL 33244495

Your Vehicle

Select Your Delivery Method

Description

Bilstein M 9200 (Coilover) is designed specifically for professional off-road competition use which requires custom lengths and valve settings. M 9200 (Coilover) features a fully adjustable dual rate spring hardware system that will compliment a wide array of industry standard coilover springs. These coilovers are equipped with a 60mm ID remote reservoir and are owner rebuildable and revalvable. M 9200 (Coilover) offers the ability to efficiently adjust spring rates to achieve the optimum performance.

Specifications

FAB:

Threaded body with dual-rate coilover hardware

Piston Diameter:

60mm

Shaft Diameter (mm):

22.0

Spring Max Travel (IN):

14.00

Stroke/Travel Length (IN):

14.00

Stroke/Travel Length (mm):

355.6

Title:

Bilstein Shock Absorbers

Active or Passive Suspension:

Passive

Adjustable Compression:

No

Adjustable Rebound:

No

Adjustable Ride Height:

Yes

Series:

M 9200 (Coilover)

Finish:

Zinc Plated

Boot Included:

N/A

Spring Seat Included:

No

Upper Mount Type:

Eye .5x1.5in

Internal Design:

Monotube

Lower Mount Type:

Eye .5x1.5in

Reservoir:

Yes

Body Design:

Threaded Body (Coilover)

Compression @0.52m/s:

1000

Collapsed Length (MM):

622.3

Extended Length (MM):

977.9

Rebound @0.52m/s:

2550

Extended Length (IN):

38.50

Collapsed Length (IN):

24.50

Body Diameter (ID):

60mm

Mount Type:

Eye-to-Eye

Collapsed Length (IN) Rounded:

25

Optional Reservoir Clamp:

N/A

Extended Length (IN) Rounded:

39

Grade Type:

Performance

Mounting Hardware Included:

No

Travel Length:

14.00

Compressed Length:

622.3

Extended Length:

977.9

PartType:

Shocks / Struts

Segment:

Motorsports

Prop 65 (Y/N):

Y

Prop 65 - Short Label:

WARNING: Cancer & Reproductive Harm - www.P65Warnings.ca.gov

Installation

BILGeneric_instructions_02.pdf
