Bilstein

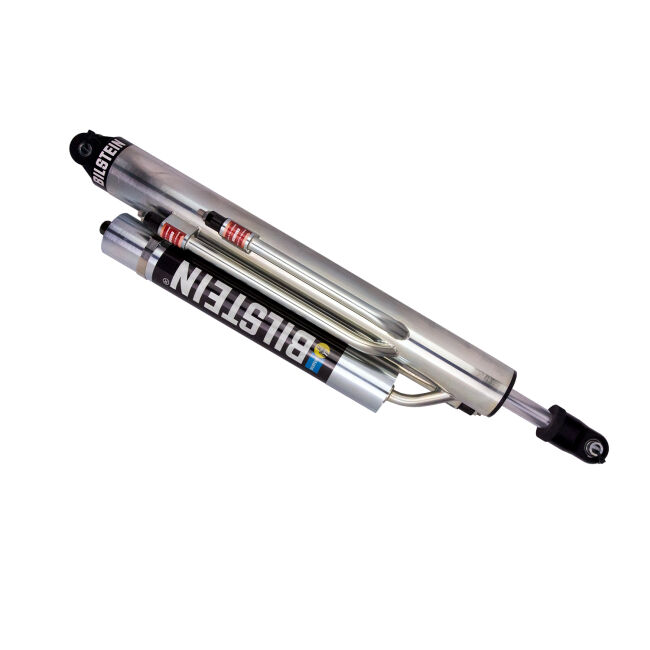

M 9200 (Bypass) - Suspension Shock Absorber

$1,497.00 Price Match Request Badge

By Bilstein -

#BIL 33250823

Your Vehicle

Select Your Delivery Method

Description

Bilstein M 9200 (Bypass) shock absorbers feature position sensitive damping and are designed specifically for professional off-road motorsports. M 9200 (Bypass) shock absorbers are available in either 3-tube or 4-tube configurations and include a piggyback reservoir. M 9200 (Bypass) shock absorbers are for custom fitments and are sold by length. These shock absorbers are completely owner rebuildable and revalvable. All service components are readily available and sold separately. Utilizing an M 9200 (Bypass) shock absorber is the easiest and most effective way to tune an off-road suspension for ultimate performance.

Specifications

FAB:

4-tube, position sensitive with adjustable rebound and compression

Piston Diameter:

70mm

Shaft Diameter (mm):

28.6

Spring Max Travel (IN):

18.00

Stroke/Travel Length (IN):

18.00

Stroke/Travel Length (mm):

457.2

Title:

Bilstein Shock Absorbers

Active or Passive Suspension:

Passive

Adjustable Compression:

Yes

Adjustable Rebound:

Yes

Adjustable Ride Height:

No

Series:

M 9200 (Bypass)

Finish:

Zinc Plated

Boot Included:

N/A

Spring Seat Included:

No

Upper Mount Type:

Eye .5x1.5in

Internal Design:

Monotube

Lower Mount Type:

Eye .5x1.5in

Reservoir:

Yes

Position:

Left

Body Design:

4-Tube Bypass Screw Top

Compression @0.52m/s:

Custom

Collapsed Length (MM):

723.9

Extended Length (MM):

1181.1

Rebound @0.52m/s:

Custom

Extended Length (IN):

46.50

Collapsed Length (IN):

28.50

Body Diameter (ID):

70mm

Mount Type:

Eye-to-Eye

Collapsed Length (IN) Rounded:

29

Optional Reservoir Clamp:

N/A

Extended Length (IN) Rounded:

47

Grade Type:

Performance

Mounting Hardware Included:

No

Shaft Diameter:

1-1/8 in.

Travel Length:

18.00

Compressed Length:

723.9

Extended Length:

1181.1

PartType:

Shocks / Struts

Segment:

Motorsports

Prop 65 (Y/N):

Y

Prop 65 - Short Label:

WARNING: Cancer & Reproductive Harm - www.P65Warnings.ca.gov

Installation

BILGeneric_instructions_02.pdf
