Bilstein

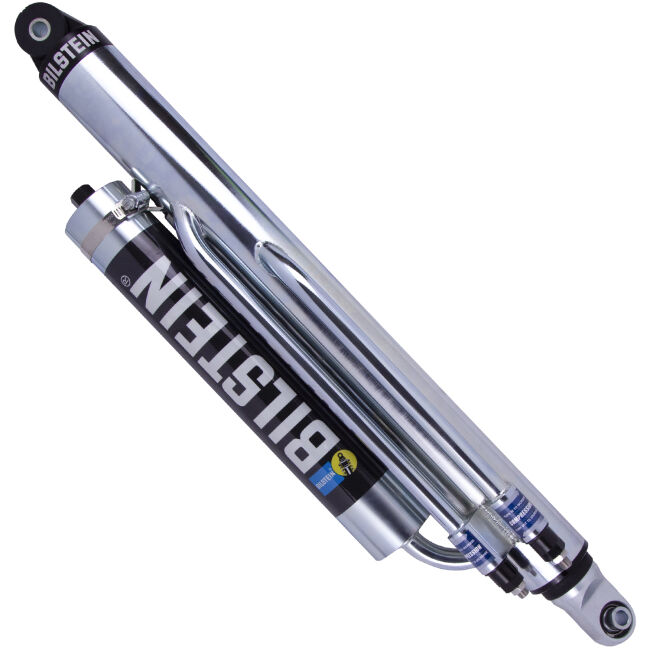

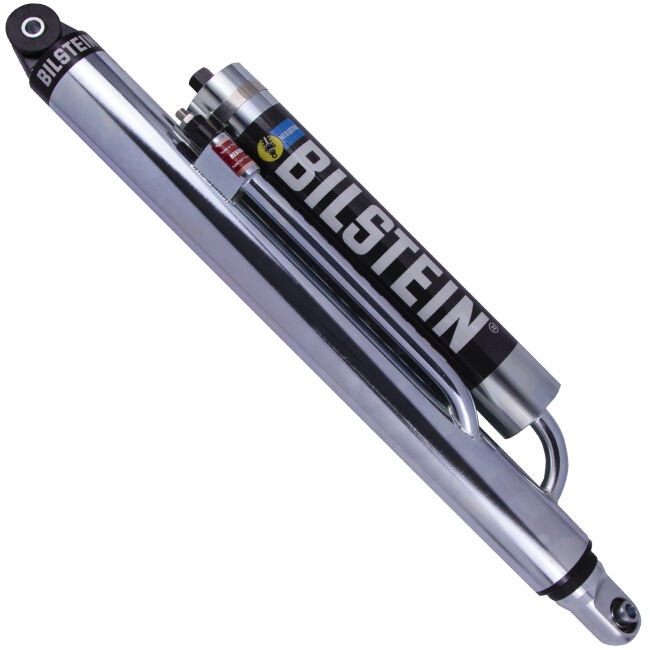

M 9200 (Bypass) - Suspension Shock Absorber

FAB:

Available in 60mm, 70mm and 83mm monotubes

FAB:

4-tube, position sensitive with adjustable rebound and compression

Piston Diameter:

60mm

Shaft Diameter (mm):

22.0

Spring Max Travel (IN):

14.00

Stroke/Travel Length (IN):

14.00

Stroke/Travel Length (mm):

355.6

Title:

Bilstein Shock Absorbers

Active or Passive Suspension:

Passive

Adjustable Compression:

Yes

Adjustable Rebound:

Yes

Adjustable Ride Height:

No

Series:

M 9200 (Bypass)

Finish:

Zinc Plated

Boot Included:

N/A

Spring Seat Included:

No

Upper Mount Type:

Eye .5x1.5in

Internal Design:

Monotube

Lower Mount Type:

Eye .5x1.5in

Reservoir:

Yes

Position:

Right

Body Design:

3-Tube Bypass Screw Top

Compression @0.52m/s:

Custom

Collapsed Length (MM):

622.3

Extended Length (MM):

977.9

Rebound @0.52m/s:

Custom

Extended Length (IN):

38.50

Collapsed Length (IN):

24.50

Body Diameter (ID):

60mm

Mount Type:

Eye-to-Eye

Collapsed Length (IN) Rounded:

25

Optional Reservoir Clamp:

N/A

Extended Length (IN) Rounded:

39

Grade Type:

Performance

Mounting Hardware Included:

No

Travel Length:

14.00

Compressed Length:

622.3

Extended Length:

977.9

PartType:

Shocks / Struts

Segment:

Motorsports

Prop 65 (Y/N):

Y

Prop 65 - Short Label:

WARNING: Cancer & Reproductive Harm - www.P65Warnings.ca.gov
