Description
Specifications
FAB:
Larger working piston with deflective disc valving
Strut Mount Insulator(s) Included:
No
Strut Mount(s) Included:
No
Piston Diameter:
36mm
Spring Max Travel (IN):
4.72
Stroke/Travel Length (IN):
4.72
Stroke/Travel Length (mm):
119.9

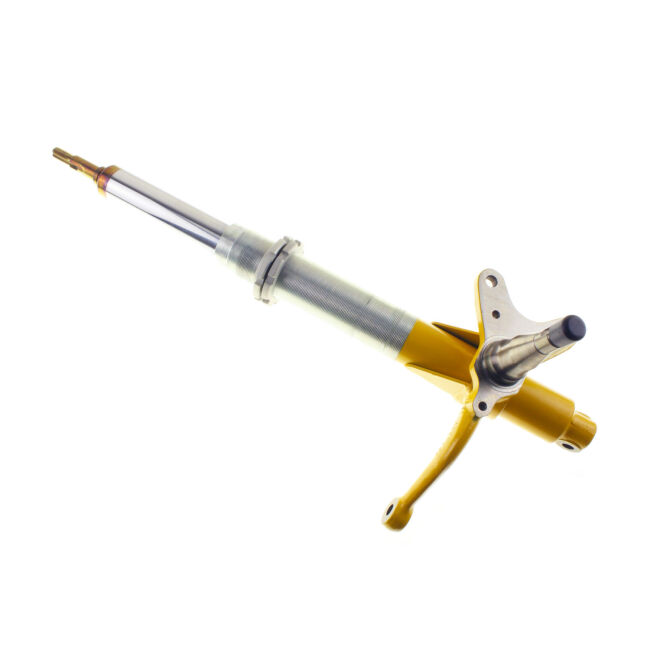

Title:
Bilstein Shock Absorbers
Spring Hardware:
N/A
Active or Passive Suspension:
Passive
Adjustable Compression:
No
Adjustable Ride Height:
No
Coil Spring Insulator(s) Included:
No
Series:
Motorsports
Finish:
Yellow Paint
Boot Included:
No
Spring Seat Included:
Yes
Upper Mount Type:
Stem
Internal Design:
Monotube
Lower Mount Type:
Special
Adjustable Damping:
Non-Adjustable
Position:
Front Right
Body Design:
Threaded Body (Coilover)
Compression @0.52m/s:
1600
Valving Identifier:
N/A
Body Material:
Steel
Collapsed Length (MM):
463.0
Extended Length (MM):
583.0
Piston Type:
Linear
Rebound @0.52m/s:
1610
Extended Length (IN):
22.95
Collapsed Length (IN):
18.23
Body Diameter (ID):
36mm
Grade Type:
Performance
Mounting Hardware Included:
No
Shaft Diameter:
11mm
Coil Spring Included:
No
Includes Bump Stop:
No
PartType:
Shocks / Struts
Segment:
Motorsports
Prop 65 (Y/N):
Y
Prop 65 - Short Label:
WARNING: Cancer & Reproductive Harm - www.P65Warnings.ca.gov
