Bilstein

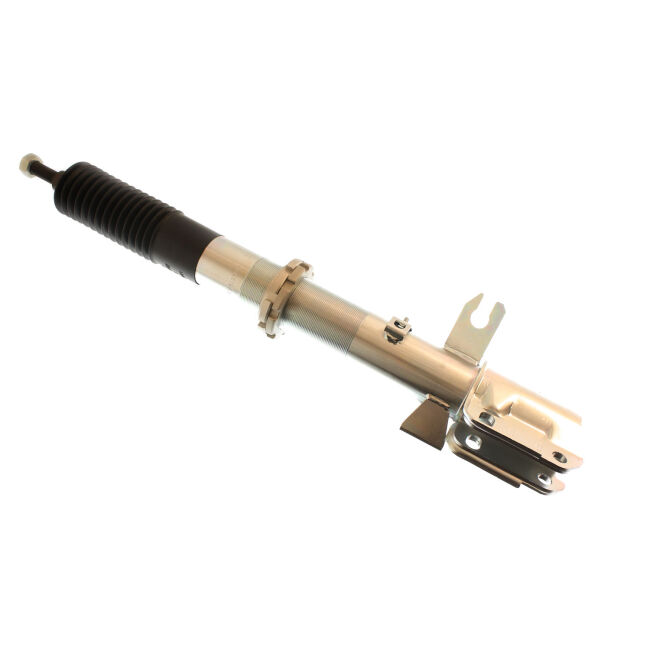

Motorsports - Suspension Strut Assembly

$771.00 Price Match Request Badge

By Bilstein -

#BIL 35593744

Your Vehicle

Select Your Delivery Method

Description

Bilstein Motorsports dampers are designed as a direct fit solution for a variety of motorsports applications. Each damper features monotube technology with proprietary spring steel valve discs tuned specifically to each application for superior on-track handling and control. Bilstein Motorsports dampers are ideal for racers requiring a direct fit solution with true race-proven performance.

Specifications

FAB:

Larger working piston with deflective disc valving

Strut Mount Insulator(s) Included:

No

Strut Mount(s) Included:

No

Piston Diameter:

46mm

Spring Max Travel (IN):

3.92

Stroke/Travel Length (IN):

3.92

Stroke/Travel Length (mm):

99.6

Title:

Bilstein Shock Absorbers

Spring Hardware:

N/A

Active or Passive Suspension:

Passive

Adjustable Compression:

No

Adjustable Ride Height:

No

Coil Spring Insulator(s) Included:

No

Series:

Motorsports

Finish:

Zinc Plated

Boot Included:

Black Bellows

Spring Seat Included:

Yes

Upper Mount Type:

Stem

Internal Design:

Monotube

Lower Mount Type:

Bracket

Adjustable Damping:

Non-Adjustable

Position:

Front

Body Design:

Threaded Body (Coilover)

Valving Identifier:

N/A

Body Material:

Steel

Collapsed Length (MM):

422.0

Extended Length (MM):

521.5

Piston Type:

Digressive

Extended Length (IN):

20.53

Collapsed Length (IN):

16.61

Body Diameter (ID):

46mm

Compression @0.26m/s:

1440

Rebound @0.26m/s:

5370

Grade Type:

Performance

Mounting Hardware Included:

Yes

Shaft Diameter:

11mm

Coil Spring Included:

No

Includes Bump Stop:

No

PartType:

Shocks / Struts

Segment:

Motorsports

Prop 65 (Y/N):

Y

Prop 65 - Short Label:

WARNING: Cancer & Reproductive Harm - www.P65Warnings.ca.gov

Installation

BILGeneric_instructions_02.pdf
