Bilstein
B8 6112 - Suspension Kit

$885.00

By Bilstein -

#BIL 47310896

Confirm this item fits below.
Your Vehicle
Year
Make
Model

Description

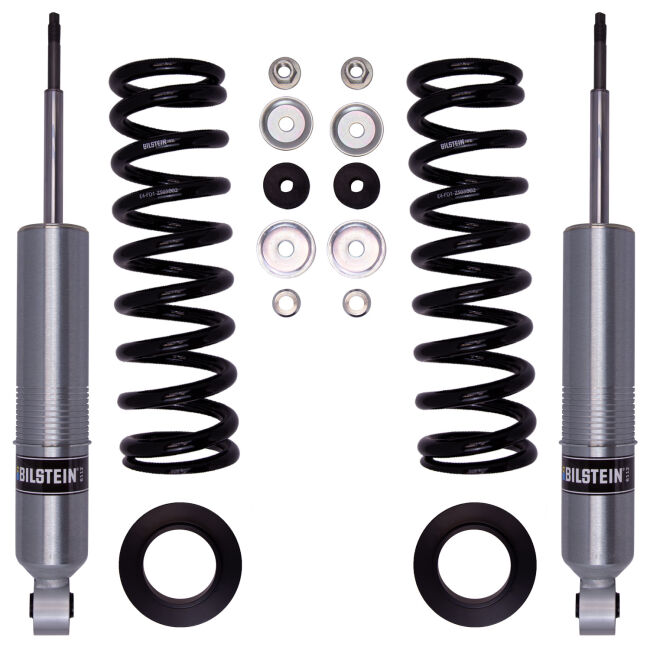

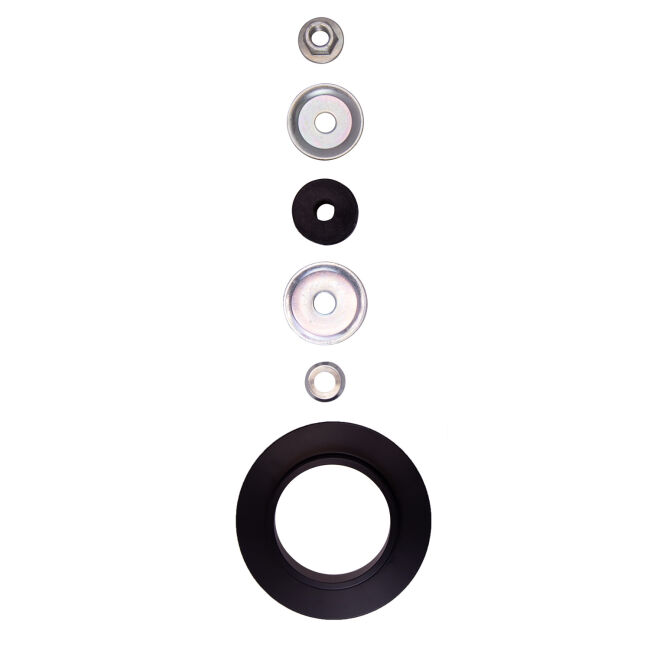

Bilstein B8 6112 leveling kits are designed to provide more ground clearance, allow for larger tires, and increase wheel travel. Multiple snap-ring grooves in the body allow for different spring seat positions, providing 0-2.75 inches of front lift (depending on application). These kits consist of (2) 60mm shock absorbers combined with (2) custom matched cold wound coil springs and (2) billet aluminum spring seats. The large 2.65-in OD body and 60mm digressive piston allows for increased damping control for optimal on-road and off-road capabilities. Experience the legendary Bilstein off-road experience with the best direct fit spring and shock kit for your light truck or SUV.

Specifications

Strut Mount Insulator(s) Included:

No

FAB:

Large 60mm body for increased oil capacity, cooling, and long-term durability

Front Main Spring Rate (lbs/in):

450

Piston Diameter:

60mm

Stroke/Travel Length (IN):

4.98

Stroke/Travel Length (mm):

126.5

Title:

Bilstein Shock Absorbers

Coil Spring Insulator(s) Included:

No

Series:

B8 6112

Finish:

Dampers: Zinc Plated/Springs: Black

Boot Included:

No

Spring Seat Included:

Yes

Internal Design:

Monotube

Reservoir:

No

Body Design:

Snap Ring Grooved Body (Coilover)

Collapsed Length (MM):

344.5

Extended Length (MM):

471.0

Extended Length (IN):

18.54

Collapsed Length (IN):

13.56

Body Diameter (ID):

60mm

Grade Type:

Performance

Shaft Diameter:

18mm

Suspension Type:

Spring

PartType:

Suspension Kit

Segment:

Light Truck

Prop 65 (Y/N):

Y

Prop 65 - Short Label:

WARNING: Cancer & Reproductive Harm - www.P65Warnings.ca.gov

Installation

BILE4-WM5-Y534A00_1.pdf

Product Fitments

1996-2004 Toyota Tacoma Base
1998-2000 Toyota Tacoma Limited
1998-2004 Toyota Tacoma Pre Runner
1996-2000 Toyota Tacoma SR5
