Bilstein
B8 6112 - Suspension Kit
$885.00
By Bilstein -
#BIL 47323841
Confirm this item fits below.
Your Vehicle
Description

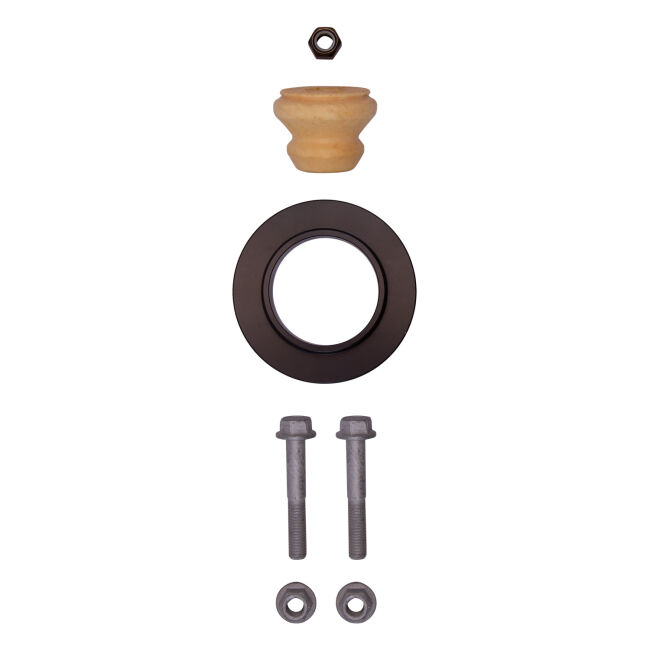

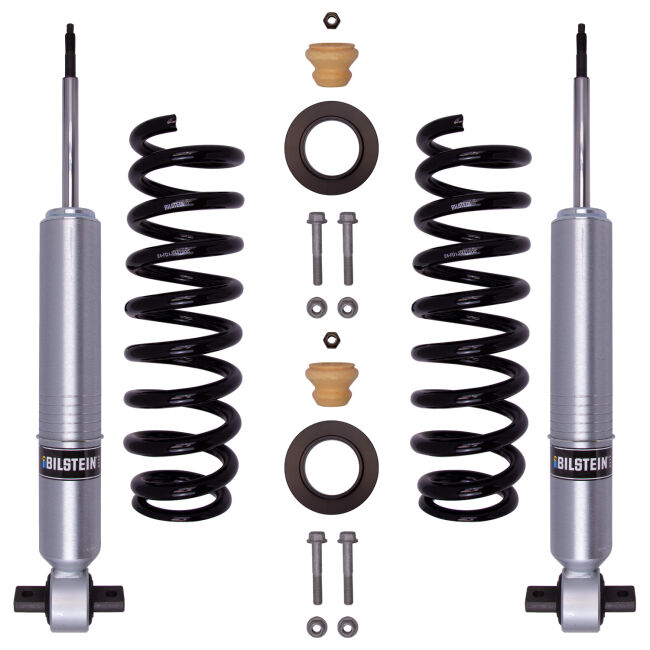

Bilstein B8 6112 leveling kits are designed to provide more ground clearance, allow for larger tires, and increase wheel travel. Multiple snap-ring grooves in the body allow for different spring seat positions, providing 0-2.75 inches of front lift (depending on application). These kits consist of (2) 60mm shock absorbers combined with (2) custom matched cold wound coil springs and (2) billet aluminum spring seats. The large 2.65-in OD body and 60mm digressive piston allows for increased damping control for optimal on-road and off-road capabilities. Experience the legendary Bilstein off-road experience with the best direct fit spring and shock kit for your light truck or SUV.
Specifications
Front Main Spring Rate (lbs/in):
500
Piston Diameter:
60mm
Title:
Bilstein Shock Absorbers
Series:
B8 6112
Finish:
Dampers: Zinc Plated/Springs: Black
Boot Included:
No
Spring Seat Included:
Yes
Internal Design:
Monotube
Reservoir:
No
Adjustable Damping:
Non-Adjustable
Body Design:
Snap Ring Grooved Body (Coilover)
Body Diameter (ID):
60mm
Shaft Diameter:
18mm
PartType:
Suspension Kit
Segment:
Light Truck
Prop 65 (Y/N):
Y
Prop 65 - Short Label:
WARNING: Cancer & Reproductive Harm - www.P65Warnings.ca.gov
Installation
Product Fitments
2021-2025 Ford F-150 King Ranch
2021-2025 Ford F-150 Lariat
2021-2023 Ford F-150 Limited
2021-2025 Ford F-150 Platinum
2024-2025 Ford F-150 STX
2021-2025 Ford F-150 Tremor
2021-2025 Ford F-150 XL
2021-2025 Ford F-150 XLT
