Description
Specifications
FAB:
Monotube design ensures consistent, fade-free performance in all conditions
Strut Mount Insulator(s) Included:
No
Strut Mount(s) Included:
No
Piston Diameter:
46mm
Spring Max Travel (IN):
5.30
Stroke/Travel Length (IN):
5.30
Stroke/Travel Length (mm):
134.6
Title:

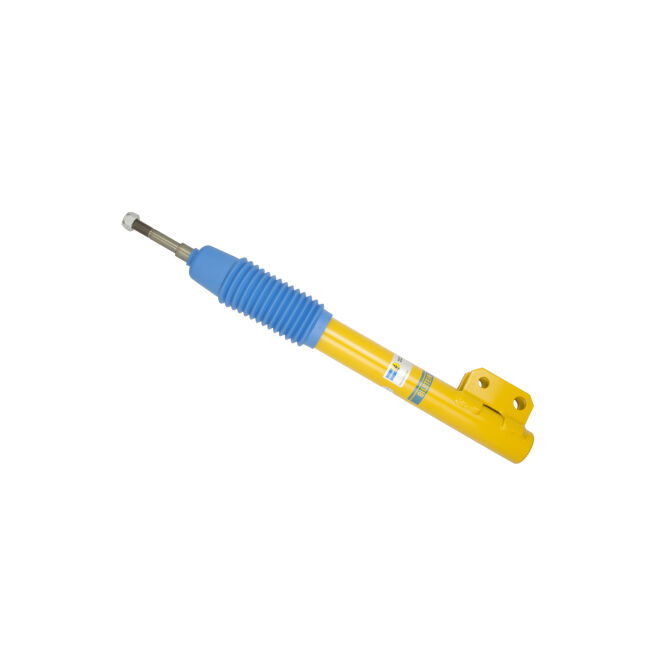

Bilstein Shock Absorbers
Active or Passive Suspension:
Passive
Adjustable Compression:
No
Adjustable Ride Height:
No
Coil Spring Insulator(s) Included:
No
Series:
AK Series
Finish:
Yellow Paint
Boot Included:
Blue Straight
Spring Seat Included:
No
Upper Mount Type:
Stem
Internal Design:
Monotube
Lower Mount Type:
Bracket
Adjustable Damping:
Non-Adjustable
Body Design:
Stock Mount Smooth Body
Compression @0.52m/s:
690
Valving Identifier:
224/122
Body Material:
Steel
Collapsed Length (MM):
406.0
Extended Length (MM):
544.0
Piston Type:
Linear
Rebound @0.52m/s:
1435
Extended Length (IN):
21.42
Collapsed Length (IN):
15.98
Body Diameter (ID):
46mm
Compression @0.26m/s:
520
Rebound @0.26m/s:
1165
Grade Type:
Performance
Mounting Hardware Included:
No
Shaft Diameter:
16mm
Coil Spring Included:
No
Includes Bump Stop:
No
PartType:
Shocks / Struts
Segment:
Motorsports
Prop 65 (Y/N):
Y
Prop 65 - Short Label:
WARNING: Cancer & Reproductive Harm - www.P65Warnings.ca.gov
