Bilstein
M 7100 - Suspension Shock Absorber

$275.00 Price Match Request Badge

By Bilstein -

#BIL AK7112SB06

Your Vehicle

Select Your Delivery Method

Description

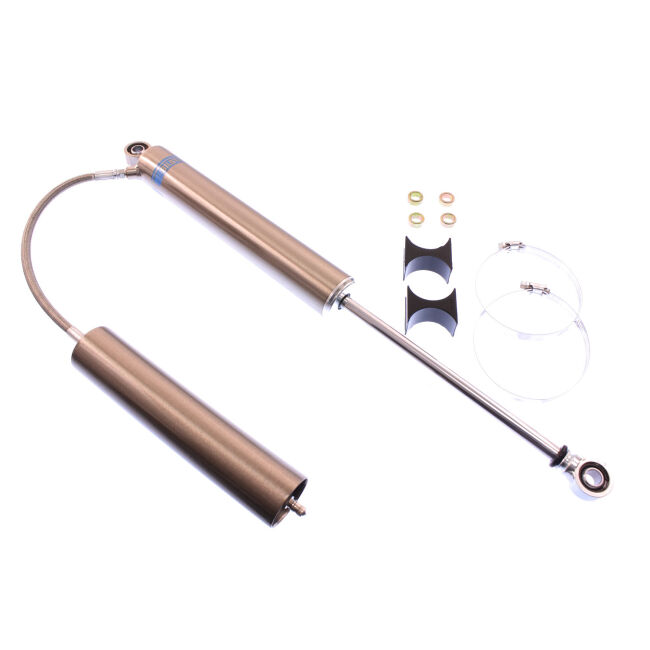

Bilstein M 7100 shock absorbers are designed for custom off-road motorsports and recreational applications. These shock absorbers are owner rebuildable and are available in remote reservoir or non-reservoir configurations. Each shock absorber is supplied with ½ inch heims and misalignment spacers for maximum durability in off-road conditions. M 7100 shock absorbers are available in a wide array of lengths and valve settings. Service components for M 7100 shock absorbers are readily available and sold separately. M 7100 shock absorbers will offer reliable performance that is customizable to meet specific demands.

Specifications

FAB:

Self-adjusting deflective disc valving reacts immediately to surface changes enabling maximum vehicle control

Piston Diameter:

46mm

Shaft Diameter (mm):

14.0

Spring Max Travel (IN):

11.58

Stroke/Travel Length (IN):

11.58

Stroke/Travel Length (mm):

294.1

Title:

Bilstein Shock Absorbers

Active or Passive Suspension:

Passive

Adjustable Compression:

No

Adjustable Rebound:

No

Adjustable Ride Height:

No

Series:

M 7100

Finish:

Nickel Plated with Clear Powder Coat

Spring Seat Included:

No

Upper Mount Type:

1/2in Heim

Internal Design:

Monotube

Lower Mount Type:

1/2in Heim

Reservoir:

Yes

Body Design:

Smooth Body (Non-Coilover)

Compression @0.52m/s:

800

Collapsed Length (MM):

408.9

Extended Length (MM):

703.1

Rebound @0.52m/s:

3600

Extended Length (IN):

27.68

Collapsed Length (IN):

16.10

Body Diameter (ID):

46mm

Mount Type:

Eye-to-Eye

Collapsed Length (IN) Rounded:

16

Optional Reservoir Clamp:

N/A

Extended Length (IN) Rounded:

28

Grade Type:

Performance

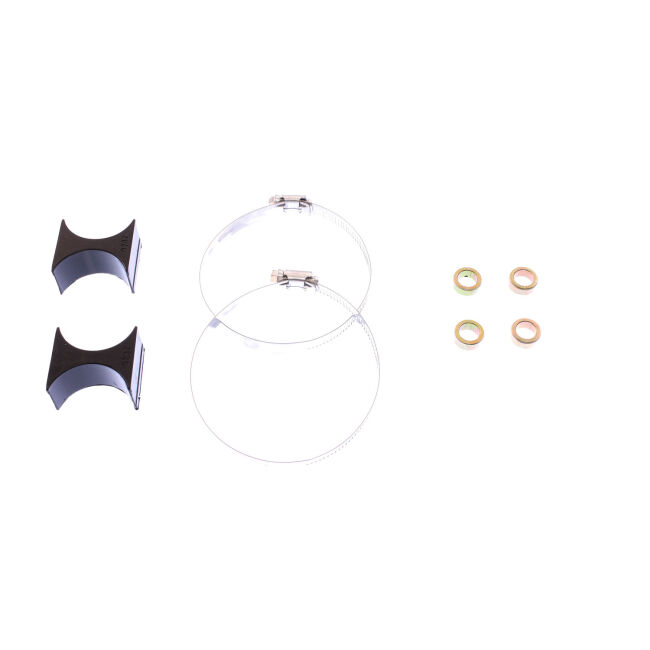

Mounting Hardware Included:

Yes

Travel Length:

11.58

Compressed Length:

408.9

Extended Length:

703.1

PartType:

Shocks / Struts

Segment:

Motorsports

Prop 65 (Y/N):

Y

Prop 65 - Short Label:

WARNING: Cancer & Reproductive Harm - www.P65Warnings.ca.gov

Installation

BIL196030-0.pdf
