Bilstein

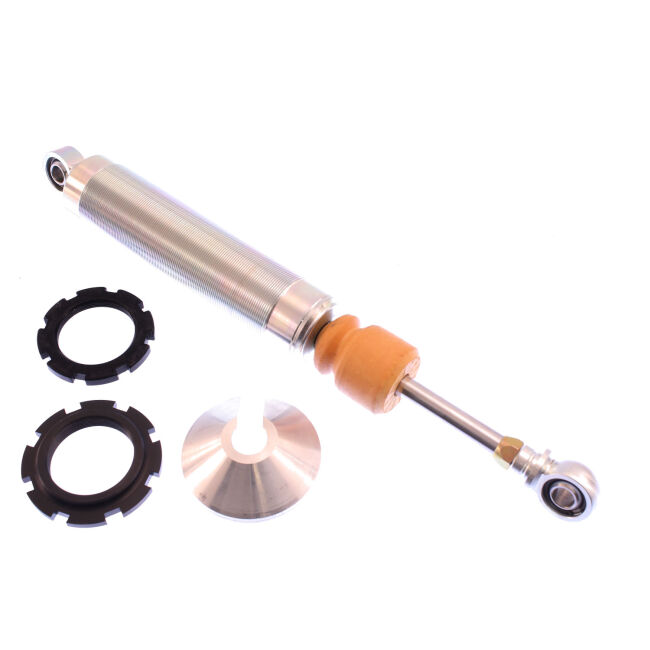

M 7100 Classic (Coilover) - Suspension Shock Absorber

FAB:

46mm monotube design ensures consistent, fade-free performance in all conditions

Piston Diameter:

46mm

Shaft Diameter (mm):

14.0

Spring Max Travel (IN):

8.25

Stroke/Travel Length (IN):

8.25

Stroke/Travel Length (mm):

209.6

Title:

Bilstein Shock Absorbers

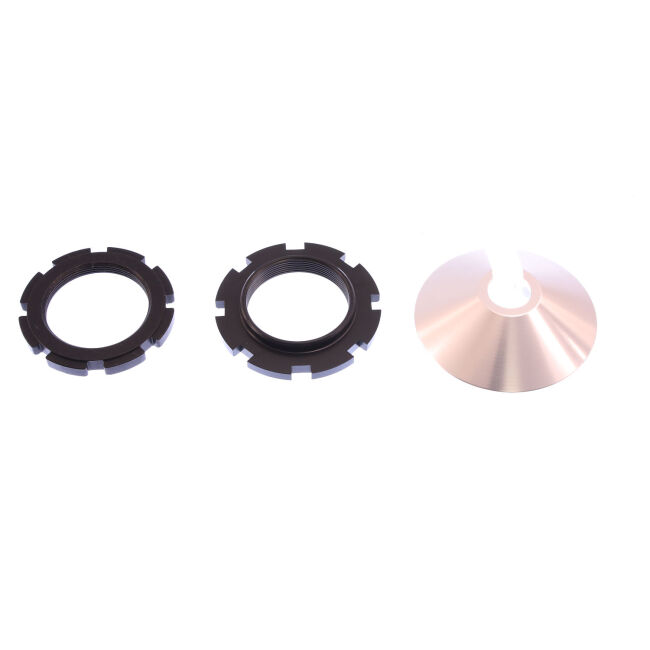

Spring Hardware:

Single Rate (2.5in)

Active or Passive Suspension:

Passive

Adjustable Compression:

No

Adjustable Rebound:

No

Adjustable Ride Height:

No

Series:

M 7100 Classic (Coilover)

Finish:

Zinc Plated

Spring Seat Included:

Yes

Upper Mount Type:

1/2in Heim

Internal Design:

Monotube

Lower Mount Type:

1/2in Heim

Reservoir:

No

Body Design:

Threaded Body (Coilover)

Compression @0.52m/s:

Custom

Collapsed Length (MM):

355.6

Extended Length (MM):

565.2

Rebound @0.52m/s:

Custom

Extended Length (IN):

22.25

Collapsed Length (IN):

14.00

Body Diameter (ID):

46mm

Mount Type:

Eye-to-Eye

Collapsed Length (IN) Rounded:

14

Optional Reservoir Clamp:

N/A

Extended Length (IN) Rounded:

22

Grade Type:

Performance

Mounting Hardware Included:

No

Travel Length:

8.25

Compressed Length:

355.6

Extended Length:

565.2

PartType:

Shocks / Struts

Segment:

Motorsports

Prop 65 (Y/N):

Y

Prop 65 - Short Label:

WARNING: Cancer & Reproductive Harm - www.P65Warnings.ca.gov
