Bilstein

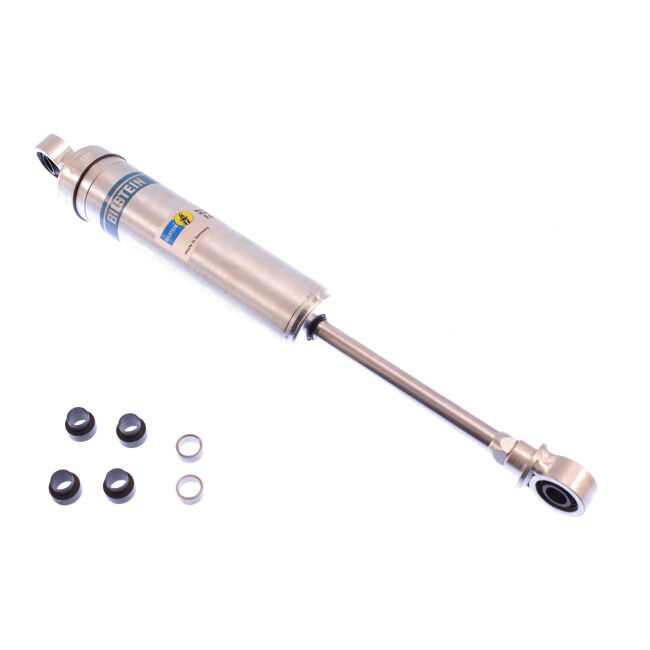

M 7100 Classic - Suspension Shock Absorber

$177.00 Price Match Request Badge

By Bilstein -

#BIL F4B460930H0

Your Vehicle

Select Your Delivery Method

Description

Bilstein M 7100 Classic shock absorbers are the most successful shock absorbers in off-road racing history. Since their inception in the early 70's, these 46mm monotube shock absorbers are equipped on more winning off-road cars and trucks than any other shock absorber. Today, the M 7100 Classic shock absorbers are perfect for meeting the demands of vintage off road race cars and VW based off-road recreational vehicles. Withstanding the test of time, the M 7100 Classic shock absorber will deliver period correct performance.

Specifications

FAB:

Available for standard and coilover applications in a wide variety of lengths

Piston Diameter:

46mm

Shaft Diameter (mm):

14.0

Spring Max Travel (IN):

5.00

Stroke/Travel Length (IN):

5.00

Stroke/Travel Length (mm):

127.0

Title:

Bilstein Shock Absorbers

Active or Passive Suspension:

Passive

Adjustable Compression:

No

Adjustable Rebound:

No

Adjustable Ride Height:

No

Series:

M 7100 Classic

Finish:

Zinc Plated

Spring Seat Included:

No

Upper Mount Type:

1/2in Heim

Internal Design:

Monotube

Lower Mount Type:

1/2in Heim

Reservoir:

No

Body Design:

Smooth Body (Coilover)

Compression @0.52m/s:

1600

Collapsed Length (MM):

285.5

Extended Length (MM):

412.5

Rebound @0.52m/s:

3500

Extended Length (IN):

16.24

Collapsed Length (IN):

11.24

Body Diameter (ID):

46mm

Mount Type:

Eye-to-Eye

Collapsed Length (IN) Rounded:

11

Optional Reservoir Clamp:

N/A

Extended Length (IN) Rounded:

16

Grade Type:

Performance

Mounting Hardware Included:

Yes

Travel Length:

5.00

Compressed Length:

285.5

Extended Length:

412.5

PartType:

Shocks / Struts

Segment:

Motorsports

Prop 65 (Y/N):

Y

Prop 65 - Short Label:

WARNING: Cancer & Reproductive Harm - www.P65Warnings.ca.gov

Installation

BILGeneric_instructions_02.pdf
