BDS Suspension
2021-2026 Ford F150 4wd, 6" Suspension Lift Kit, 3" Rear Lift, Block - Fox 2.0 I
By BDS Suspension -
#BDS BDS1900FSR
Description

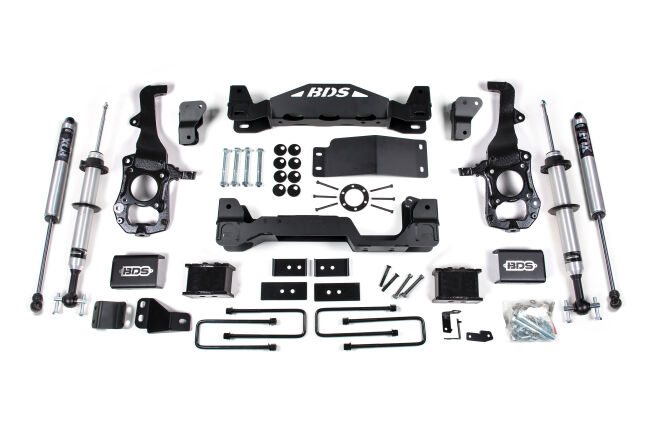

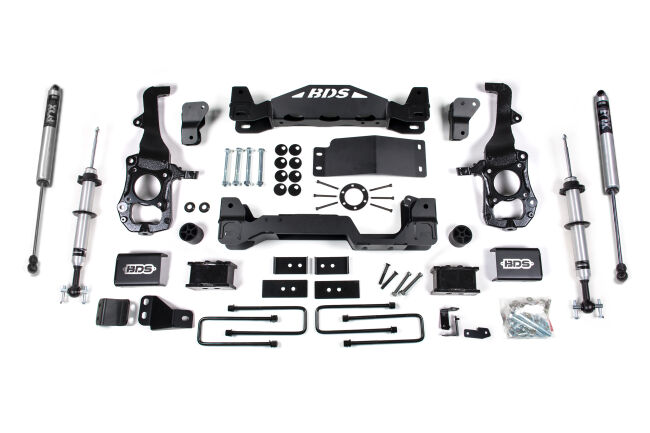

Increase the performance and capability of the 2021-2026 Ford F150 trucks with 6-inch lift kit with FOX 2.0 struts by BDS Suspension. Designed to improve stance the BDS 6 inch lift kit with FOX 2.0 front struts give more capability off-road. This kit includes everything necessary to set your F150 truck up right with clearance for up to 37" tires.
This kit takes advantage of BDS's tried and true high-clearance design for improved ground clearance, strength, and offroad protection while correcting suspension and steering geometry for great on-road handling characteristics. Up front the kit utilizes FOX 2.0 strut shocks, high-arched 1/4-inch thick steel crossmembers, multipiece differential relocation brackets and skid plate designed for offroad protection. Steering geometry is corrected at the new taller ride height with a pair of massive CNC-machined ductile iron steering knuckles. These combined with the provided sway bar relocation brackets, brake line brackets, alignment cam bolts, supplied hardware and more provide a comprehensive front suspension lift ready for use and abuse.
In the rear BDS utilizes high strength fabricated lift blocks and longer u-bolts to lift and level the stance along and NX2 Nitro or optional FOX 2.0 Performance Series shocks.
FOX 2.0 Struts

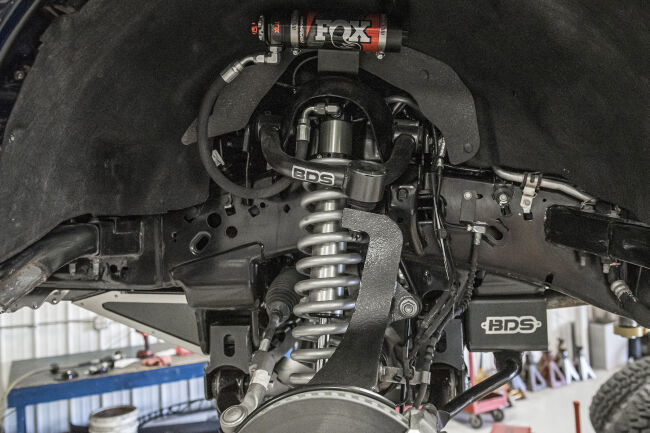

These FOX 2.0 Performance Series coil-over struts bring impressive damper performance for great ride on and offroad capability designed as a direct bolt-in replacement for the factory strut assemblies while retaining the OE coil spring and top plate. They feature a 2.0" extruded and machined 6061 T6 aluminum body for better heat dispersion, along with an internal floating piston (IFP) to eliminate oil aeration, FOX's proprietary internals, 5/8" hard chrome plated heat-treated alloy shaft.

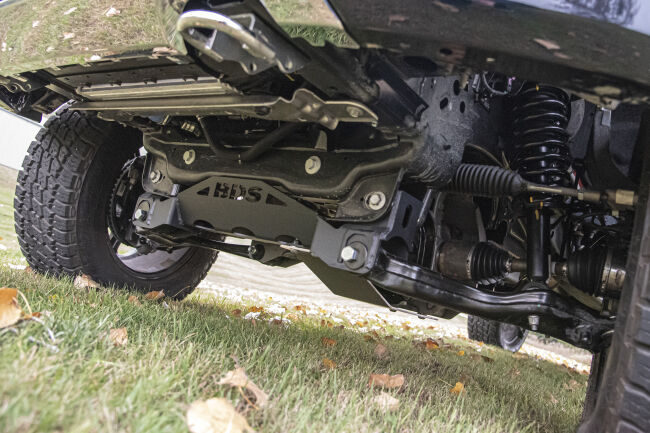

High Clearance Crossmemebers
BDS maximizes ground clearance with their heavy duty 1/4-inch thick laser cut perfect fit crossmembers. Paired with a front skid plate syst
Specifications
Shocks Included:
Yes
Installation Time:
8-10 Hrs
Installation Difficulty:
Difficult
Front Lift Height:
6
Front Lift Method:
Cross Member
Rear Lift Height:
3
Rear Lift Method:
Block
Rear Lift Option:
3 Inch Block Kit
Installation Tools:
204 592 Ball Joint Separator Rec-Tie Rod Separator Rec-Torque Wrench-saw reciprocating
Prop 65 (C| R or CR):
CR
Prop 65 Yes/No:
Yes
Prop 65 Short Label:
WARNING: Cancer and Reproductive Harm - https://www.p65warnings.ca.gov
Prop 65 Warning Label:
