ICON Vehicle Dynamics

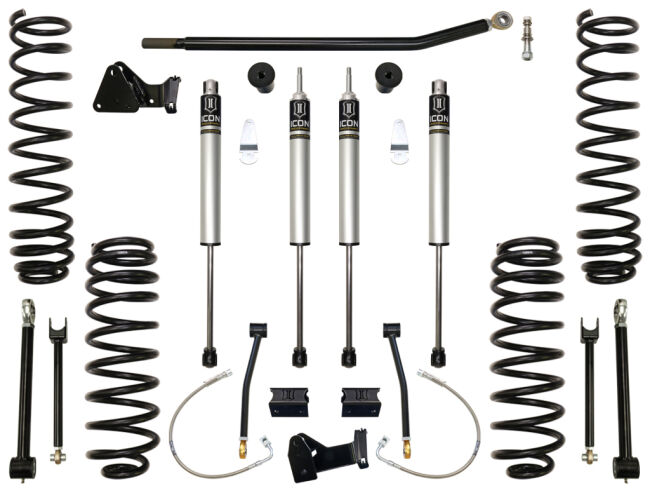

07-18 JEEP JK 4.5" STAGE 1 SUSPENSION SYSTEM
#ICO K24001
Description
Frequently Asked Questions:
-
What is the primary goal of the ICON 4.5" Jeep JK Performance Suspension System?
The primary goal is to strike a perfect balance between wheel travel, articulation, ground clearance, and precise on and off-road handling characteristics. -
What size tires can be fitted with this system?
This kit allows proper clearance for 35" tall tires with no modifications and 37" tires with aftermarket high clearance fenders. -
Are there any specific driveshaft considerations?
Yes, the front driveshaft may need to be trimmed for full articulation, and a specific ICON front drive shaft is required for proper front driveline clearance. -
Will the lift height vary between 2-door and 4-door models?
Yes, 2-door models sit slightly higher than 4-door models but remain level when installed. -
Can this system be returned to stock configuration?
Yes, the system is 100% returnable to stock. -
Are the included shocks serviceable?
Yes, the shocks are fully serviceable. -
How is the lift height calculated, and can it vary?
ICON's advertised lift heights are based on a typical Jeep JK build with added accessories. Lift heights may be higher on stock-weighted vehicles.
Key Features & Benefits
- Dual-Rate Coil Springs: Enjoy guaranteed sag-free performance front and rear for consistent lift and ride quality.
- High-Steer Flip Kit: Achieve optimal steering geometry and increased ground clearance without the need for a drop pitman arm.
- Stainless Steel High-Steer Taper Adapter: Eliminates the need to drill your factory knuckle for a clean and secure installation.
- Tuned Link Arms: Utilize dual-rate bushings or PTFE-lined rod ends for superior vibration isolation, controlled deflection, and maximum articulation.
- 2.0 Aluminum Series Shocks: Experience high-performance, rebuildable, and revalvable shocks for exceptional damping.
- Increased Wheel Travel & Articulation: Significantly enhance your JK's off-road capability over stock.
- No Welding or Cutting Required: Enjoy a straightforward installation process.
- 100% Returnable to Stock: Maintain flexibility for future modifications or resale.
Specifications
Title:
07-18 JEEP JK 4.5" STAGE 1 SUSPENSION SYSTEM
Bushings Included:
Yes
Maximum Lift:
4.5
Grade Type:
Performance
Mounting Hardware Included:
Yes
Spring Color:
Black
Spring Material:
Steel
OEM Wheels & Tires Fitment:
Yes
Recommended Aftermarket Tires:
35" x 12.50" (Larger 37" tire packages will fit with minor modifications or aftermarket high clearance fenders, test fitment recommended)
Recommended Aftermarket Wheels:
ICON Alloys - 17x8.5 w/ 4.5" Backspace / -6mm Offset
Recommended Aftermarket Wheels:
ICON Alloys - 18x9 w/ 4.5" Backspace / -12mm Offset
Recommended Aftermarket Wheels:
ICON Alloys - 20x9 w/ 4.5" Backspace / -12mm Offset
Coils Quantity Front:
2
Dual Rate Coil Springs:
Yes
Shocks Included:
Yes
Coils Quantity Rear:
2
California Proposition 65:
WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
California Prop 65 Warning:
Yes
·Lift Height:
4.5"
·Shock Brand:
ICON
·Shock Model:
ICON 2.0 Aluminum Series | VS | Coilover | Reservoir
·Compatible with OEM Wheels and Tires:
Yes
·Wheel Size:
OEM
·Wheel Size:
18x9|-12mm
·Wheel Size:
20x9|+0mm
·Wheel Size:
17x8.5|-6mm
·Tire Size (STD):
OEM
·Tire Size (STD):
35x12.50
·Tire Size (Metric):
315/60R20
·Tire Size (Metric):
315/70R18
·Tire Size (Metric):
315/80R15
·Tire Size (Metric):
315/45R24
·Tire Size (Metric):
315/65R19
·Tire Size (Metric):
315/75R17
·Tire Size (Metric):
OEM
·Tire Size (Metric):
315/55R22
