ICON Vehicle Dynamics
09-13 FORD F150 4WD 0-2.63" STAGE 3 SUSPENSION SYSTEM W TUBULAR UCA

Frequently Asked Questions:

• What is the recommended lift height for this system?
  The adjustable coilovers provide 0-2.63" of lift height.
• What is the benefit of the ICON Delta Joint?
  The Delta Joint is a heavy-duty high angle ball joint that combines the durability of a ball joint with the performance characteristics of a traditional uniball, offering superior corrosion resistance and greater angularity than typical ball joints.
• Are the shocks included in this system serviceable?
  Yes, the shocks are fully serviceable.
• Can I fit larger tires with this system?
  Yes, the adjustable coilovers allow for the use of larger, more aggressive wheel and tire combinations. The recommended aftermarket tire size is 33" x 11.50". Larger tires may fit but will require fender trimming and modifications.
• What is the recommended aftermarket wheel size for this system?
  Recommended aftermarket wheels include ICON Alloys in sizes such as 17x8.5" with 5.00” Backspace / 6mm Offset, 18x9" with 5.25" Backspace / 6mm Offset, and 20x9" with 5.625" Backspace / 16mm Offset.
• Does this system require any cutting or welding for installation?
  No, this is a bolt-on system and does not require any cutting or welding for installation.
• What is the drive type compatibility for this system?
  This system is designed for 4WD vehicles.
• What is the material of the coilover shock bodies?
  The coilover shock bodies are made of 6061 aircraft-grade aluminum and are CAD plated for corrosion resistance.
• What type of rear shocks are included?
  The system includes 2.5" Aluminum Series Piggyback rear shocks with vehicle-specific valving.

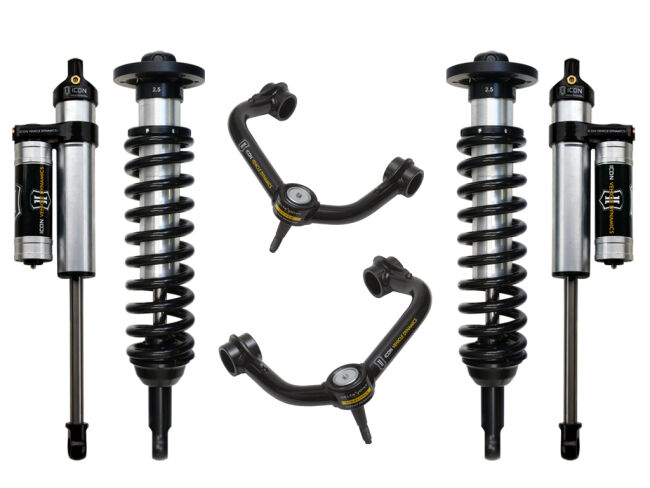

At the heart of this system are the vehicle-specific tuned 2.5" coilover shocks, featuring internal reservoirs for superior cooling and Eibach coil springs for optimal vehicle feel. The adjustable coilovers allow for 0-2.63" of lift, enabling the fitment of larger, more aggressive wheel and tire combinations. Complementing the front suspension are robust tubular upper control arms that not only add strength and durability but also help maintain factory alignment specifications by increasing caster. The rear is equipped with ICON 2.5" Aluminum Series Piggyback shocks, featuring vehicle-specific valving to perfectly balance the truck's performance front-to-rear. These shocks, with their 2.5" reservoirs, ensure consistent damping performance even under heavy use, keeping the shocks at optimal operating temperatures.
